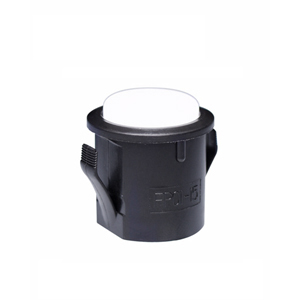

NKK Switches FP0115CAC1BF Contactless Pushbutton Switch
A contactless illuminated pushbutton switch designed for easy snap-in installation, ideal for control panels and user interfaces that demand durability and high visibility through brilliant LED illumination in red, green, or amber. It features a photo interrupter for enhanced reliability, capable of over 3 million operations, and offers multiple actuator and connector options. Its rugged construction includes a 6-pin socket for simple wiring. Suitable for industrial, vending, gaming, and harsh environments, providing reliable, long-lasting performance with quick, tool-free installation.
NKK Switches FP0115CAC1BF Contactless Pushbutton Switch Specifications:
- Actuator Travel: 0.079 inches (2.0 mm)
- Operating Force: 0.75 N (0.169 lbf)
- Mechanical Life: 3,000,000 operations minimum
- Operating Temperature Range: -25°C to +50°C (-13°F to +122°F)
- Output Condition: Photo transistor on when unshaded, off when shaded
- Collector Current: 0.8 mA minimum, 10 pA maximum
- Collector-Emitter Voltage: 30V
- Forward Voltage: 1.3V (typ.), 1.6V (max.) at 50mA
- Reverse Current: 10 pA at 5V
- Power Dissipation: 80 mW
- Housing Material: Polyamide
- Actuator Colors Available: Red, Green, Amber, White
- Connector Options: Assembled with wire leads, unassembled with crimp pins, or no connector
- Mounting: Snap-in, PCB, or panel mounting
- Size: Typical diameter around 19.6 mm (0.772 inches), panel thickness from 0.098 inches to 0.197 inches
Buy the NKK Contactless Pushbuttons – Reliable FP0115CAC1BF for Industrial Applications
Purchase the NKK FP0115CAC1BF contactless illuminated pushbutton online today and experience reliable, long-lasting performance for your industrial control panels. Featuring brilliant LED illumination in multiple colors, a robust photo interrupter for over 3 million operations, and quick snap-in mounting, this switch offers durability and ease of installation for demanding environments. Ideal for gaming, vending, and machinery control, it provides a seamless solution that combines visibility, reliability, and industrial-grade construction. Order now to improve your system’s effectiveness and simplify maintenance.
Order your NKK SeriesFP0115CAC1BF contactless illuminated pushbutton today and enhance your control systems with durable, long-lasting performance and easy snap-in installation.
Frequently Asked Questions
Where can I buy NKK Switches FP0115CAC1BF?
You can click on the BUY or RFQ button to purchase FP0115CAC1BF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part FP0115CAC1BF?
You can download the FP0115CAC1BF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of FP0115CAC1BF?
NKK Switches
