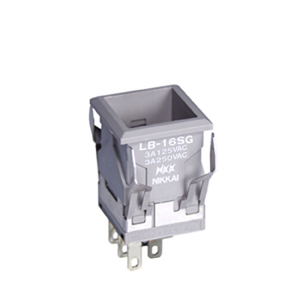

NKK Switches LB16SGW01 Illuminated Pushbutton Switch
This standard size illuminated pushbutton switch features a snap-in mounting mechanism, providing easy installation and reliable operation across various control panels. It includes a bright LED indicator for clear circuit status indication, durable polycarbonate housing, and a sealed IP65 panel seal ensuring protection against dust and water. The switch is designed for applications requiring high durability with a mechanical life of at least 1,000,000 operations and electrical ratings up to 3A at 125V or 250V AC. It offers multiple color options and is compatible with various lamp and LED types for customization.
NKK Switches LB16SGW01 Illuminated Pushbutton Switch Specifications:
- Housing Material: Polycarbonate (UL94V-0)
- Mounting: Snap-in
- Electrical Capacity: 3A @ 125V/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum at 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: ≥1,000,000 operations, Electrical Life: ≥200,000 operations
- Nominal Operating Force: 4.9N maximum downward force on cap
- Switch Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total 3.0mm
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Seal: IP65 compliant (IEC60529)
- Environmental Humidity: 95% for 96 hours at 40°C
- Standards & Certifications: UL Recognized, CSA Certified, recognized at 3A @ 125/250V AC
- LED & Lamp Compatibility: Bright LED, Super Bright LED, Incandescent & Neon lamps with various resistor options
- Color Options: Red, Amber, Green, Blue, White, Clear
- Dimensions: Suitable for panel cutouts of 16.2mm x 16.2mm for square models, panel thickness of 1.0mm to 4.0mm
Buy the NKK Switches LB16SGW01 – Reliable Illuminated Pushbutton for Industrial Applications
Enhance your industrial control panels with the reliable NKK LB16SGW01 illuminated pushbutton switch. Featuring a snap-in mounting mechanism, IP65 sealing, and a bright LED indicator, it ensures durability and visibility in demanding environments. Suitable for high-frequency operation with a lifespan of over a million cycles, it offers multiple color and lamp options to customize your applications. Easy to install, robust, and compliant with international safety standards, this switch provides everything needed for advanced machine control and automation projects.
Order your NKK Series LB16SGW01 illuminated pushbutton today and enhance your control panel with dependable, high-performance switching solutions.
