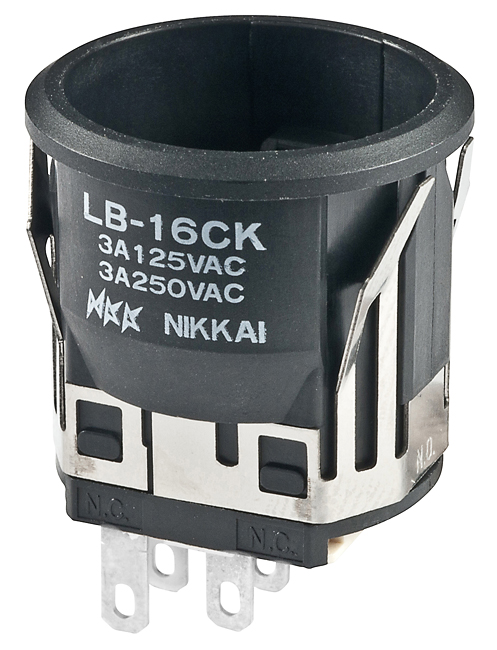

NKK Switches LB16CKW01 Standard Size Pushbutton
The standard size illuminated pushbutton switch features snap-in mounting for easy panel installation, providing reliable operation with bright illumination options. Available with incandescent, neon, or LED illumination, the switch offers durable construction including polycarbonate lenses and stainless steel clips for secure mounting across a range of panel thicknesses. It includes multiple terminal options such as solder lug and quick connect terminals, with certifications compliant to UL, cULus, and CSA standards. Ideal for control panels requiring clear visual indicators and robust performance in industrial environments.
NKK Switches LB16CKW01 Standard Size Pushbutton Specifications:
- Electrical Capacity (Resistive Load): 3A @ 125V AC, 250V AC or 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Nominal Operating Force: 4.0N
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total Travel 3.0mm
- Materials: Housing and base made of UL94V-0 polyamide, stainless steel clips, and glass fiber reinforced polyamide
- Environmental Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated, IP65 panel seal rating
- Installation Force: Cap installation force 3.92N, connector force 52.95N
- Standards & Certifications: UL, cULus and CSA recognized; Panel seal models meet IEC60529 IP65
- Ambient Humidity: 95% for 96 hours at 40°C
- Vibration Resistance: 3Hz to 55Hz with 1.5mm amplitude, 50G acceleration
Buy the NKK Series LB Standard Size Pushbutton: LB16CKW01
Purchase the NKK Series LB standard size illuminated pushbutton today online. Designed for durability and clear indication, it features snap-in mounting for easy installation, multiple illumination options including LED and neon, and certified standards for quality assurance. Its robust construction ensures long electrical life even in demanding environments. Whether for control panels or automation systems, this switch provides reliable performance, easy operation, and versatile compatibility with various panel thicknesses. Get yours now for seamless integration into your electrical setups.
Buy NKK LB16CKW01 illuminated pushbutton with snap-in mounting now and experience unmatched reliability and industrial-grade performance.
Frequently Asked Questions
Where can I buy NKK Switches LB16CKW01?
You can click on the BUY or RFQ button to purchase LB16CKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CKW01?
You can download the LB16CKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CKW01?
NKK Switches
