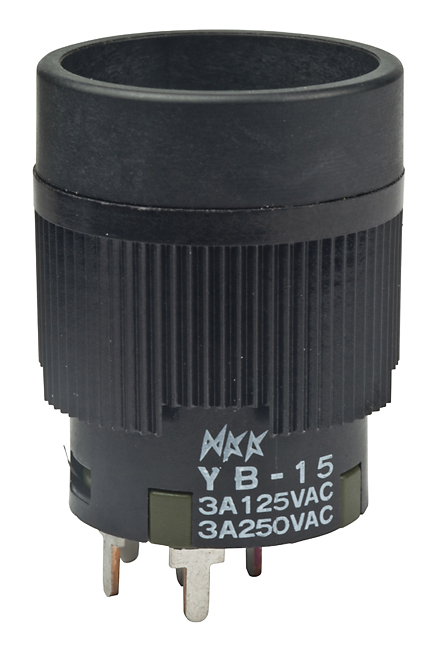

NKK Switches YB15CKW03 Illuminated Pushbutton Switch
This is an illuminated pushbutton switch designed for panel mounting. It features a short body for compact installation and easy operation, suitable for use in control panels and electronic devices.
NKK Switches YB15CKW03 Illuminated Pushbutton Switch Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit
- Electrical Life: 200,000 operations minimum for maintained circuit
- Nominal Operating Force: 1.47N for nonsealed, 1.67N for sealed (single pole)
- Travel: Pretravel .059” (1.5mm); Overtravel .059” (1.5mm); Total Travel .118” (3.0mm)
- Housing/Bezel: UL94V-0 glass fiber reinforced polyamide
- Base: UL94V-0 diallyl phthalate resin
- Movable Contactor & Contacts: Phosphor bronze with silver or gold plating
- Switch Terminals: Solder lug or quick connect
- Operating Temperature Range: -25°C through +50°C for illuminated types, -25°C through +70°C for non-illuminated
- Ingress Protection: IP65 for panel seal models
Buy the Buy NKK Switches Series YB Part Number YB15CKW03 Online
Order the NKK Switches Series YB illuminated pushbutton switch YB15CKW03 online today to ensure quick delivery and get a reliable component for your control panel needs. Featuring a short body design, this switch offers easy installation and long-term durability. Suitable for various industrial and electronic applications, it combines high electrical and mechanical lifespan with IP65 sealing for dust and splash protection. Make your purchase now and benefit from premium quality, competitive pricing, and prompt customer service to enhance your project efficiency.
Buy NKK Switches Series YB YB15CKW03 now and experience unmatched reliability and performance in control applications with durable, compact design.
Frequently Asked Questions
Where can I buy NKK Switches YB15CKW03?
You can click on the BUY or RFQ button to purchase YB15CKW03 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB15CKW03?
You can download the YB15CKW03 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB15CKW03?
NKK Switches
