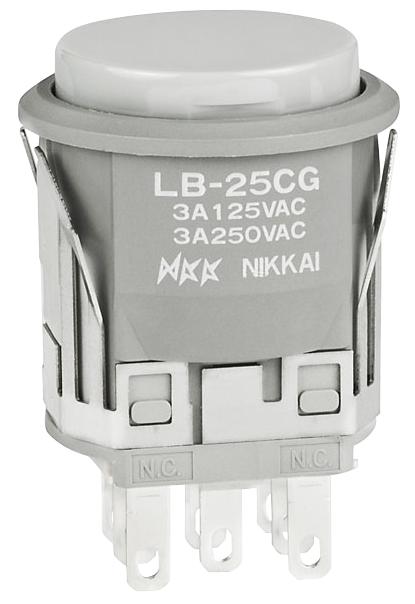

NKK Switches LB25CGW01H Illuminated Pushbutton
A standard-sized illuminated pushbutton switch designed for snap-in installation. Suitable for various electronic and control panel applications, providing a reliable and easy-to-operate interface with illumination for enhanced visibility.
NKK Switches LB25CGW01H Illuminated Pushbutton Specifications:
- Housing: Polycarbonate, Glossy Finish
- Mounting: Snap-in
- Poles & Circuits: SPDT, ON-(ON)
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Operating Temperature Range: -25°C through +50°C for illuminated
- Illumination: Bright LED with various color options
- Terminal Type: Solder Lug/Quick Connect
- LED Voltage: 5V, 12V, or 24V
- LED Current: Up to 30mA
- Rating: Certified for 3A at 125V/250V AC
- Certification: Recognized and CE marked when ordered with markings
- Switch Shape: Square, Rectangular, or Round
- Panel Cutout: 16.2mm x 16.2mm for square, varies for other shapes
- Durability: 1,000,000 operations minimum for momentary circuits
- Materials: Polycarbonate body, stainless steel clips, silver or gold plated contacts
- Environmental Resistance: Humidity 95% for 96 hours at 40°C
Buy the Buy NKK Switches LB25CGW01H Part Number LB25CGW01H Online
Order the NKK Switches LB25CGW01H online today to experience high-quality, illuminated pushbutton switches. Designed for durability and ease of use, these switches provide bright LED illumination, reliable operation up to 1 million cycles, and fit easily into standard control panels. Perfect for industrial automation, electronic control systems, and equipment requiring quick and dependable pushbutton operation. Take advantage of fast shipping and competitive prices by purchasing effortlessly through our online store today.
Get NKK Switches LB25CGW01H today—built for precision, reliable illumination, and long-lasting durability in control and electronic panels.
Frequently Asked Questions
Where can I buy NKK Switches LB25CGW01H?
You can click on the BUY or RFQ button to purchase LB25CGW01H from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25CGW01H?
You can download the LB25CGW01H datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25CGW01H?
NKK Switches
