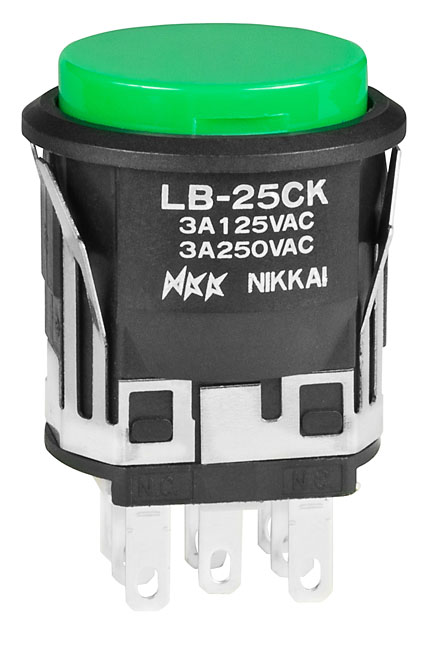

NKK Switches LB25CKW011FF Illuminated Pushbutton Switch
This standard size illuminated pushbutton switch features snap-in mounting for easy installation and reliable operation in control panels. It offers bright LED illumination options and robust construction with high electrical life, making it suitable for industrial and electronic applications. The switch can be customized with different LED colors and lens types, and it complies with safety standards. It is designed to provide tactile feedback, long electrical lifespan, and dependable performance in demanding environments, ideal for automation systems, machinery, and equipment control interfaces.
NKK Switches LB25CKW011FF Illuminated Pushbutton Switch Specifications:
- Electrical Capacity (Resistive Load): 3A @ 125V AC or 3A @ 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts; 1,500V AC minimum between contacts & case
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Nominal Operating Force: 4.9N maximum
- Travel: Pretravel 1.5mm; Overtravel 1.5mm; Total Travel 3.0mm
- Housing: Glass fiber reinforced polyamide (UL94V-0), black color
- Switch Terminals: Solder lug and .110" quick connect, epoxy sealed
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Panel Seal: Meets IP65, suitable for harsh environments
- Standards & Certifications: UL, cUL, CSA recognition available when ordered with markings
Buy the NKK Series LB Illuminated Pushbutton: LB25CKW011FF
Enhance your electronic projects and industrial control panels with the high-quality NKK Series LB25CKW011FF illuminated pushbutton switch. Featuring snap-in mounting, bright LED options, and long electrical life, this switch is perfect for demanding environments. Its robust construction includes epoxy sealed terminals, high dielectric strength, and IP65 rating for panel sealing. Reliable and easy to install, this switch improves system visibility and control, ensuring safety and operational efficiency in automation, machinery, and control interfaces. Buy online today for proven dependability.
Order your NKK Series LB25CKW011FF illuminated pushbutton switch today and enhance your control panels with dependable, bright LED illumination and durable performance.
Frequently Asked Questions
Where can I buy NKK Switches LB25CKW011FF?
You can click on the BUY or RFQ button to purchase LB25CKW011FF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25CKW011FF?
You can download the LB25CKW011FF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25CKW011FF?
NKK Switches
