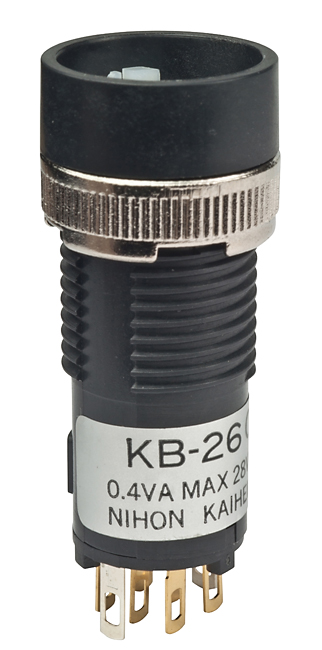

NKK Switches KB26CKG01 Miniature Pushbutton
This is a miniature illuminated pushbutton designed for panel mounting. It features a compact size suitable for control panels and provides visual indication when activated, making it ideal for various electronic and industrial applications.
NKK Switches KB26CKG01 Miniature Pushbutton Specifications:
- Electrical Capacity (Resistive Load): 1A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: Silver contact: 1,000V AC minimum, Gold contact: 750V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations for silver, 100,000 for gold
- Nominal Operating Force: 0.98 ~ 2.45N (maintained), 0.98 ~ 1.96N (momentary)
- Contact Timing: Nonshorting (break-before-make)
- Travel: Pretravel 0.087” (2.2mm); Overtravel 0.031” (0.8mm); Total Travel 0.118” (3.0mm)
- Housing: Polyamide (UL94V-0), housing base: UL94V-0
- Illumination: Bright or super bright LEDs in red, amber, green, white, blue; Spot illumination available
- Mounting: Panel mounting with rear panel bushing or snap-in mount
- Environmental: Operating temperature range -25°C to +50°C, humidity 90-95% for 96 hours, vibration 10-55Hz with peak-to-peak amplitude of 1.5mm, shock 50G
Buy the NKK KB26CKG01 – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK Miniature Pushbutton KB26CKG01 online today—engineered for durability and precision control panel applications. Its compact size, reliable illumination, and long mechanical life make it the ideal choice for industrial automation, machinery, and electronic systems. With various LED color options and easy mounting options, this switch enhances user interface visibility and operational efficiency. Ensure seamless integration into your control system by purchasing this high-quality, reliable miniature pushbutton directly from authorized online distributors now.
Get NKK KB26CKG01 today—built for precision with visual indicator for industrial control panels.
Frequently Asked Questions
Where can I buy NKK Switches KB26CKG01?
You can click on the BUY or RFQ button to purchase KB26CKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KB26CKG01?
You can download the KB26CKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KB26CKG01?
NKK Switches
