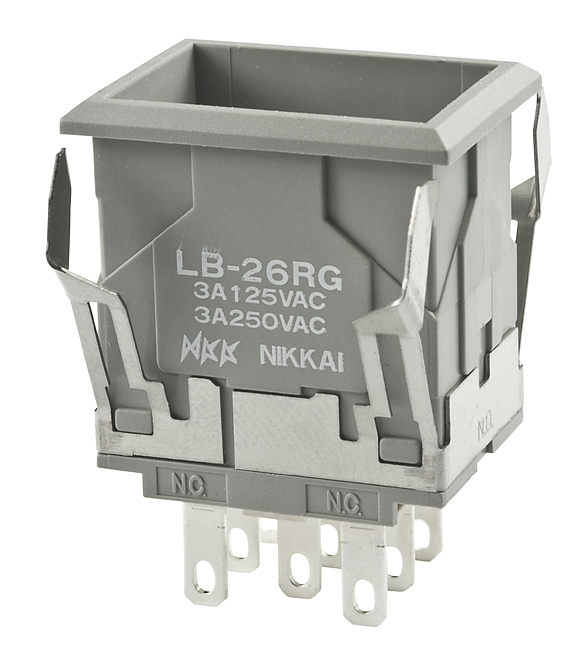

NKK Switches LB26RGW01 Illuminated Pushbutton Switch
This standard size illuminated pushbutton switch features a snap-in mounting design, making it ideal for industrial and electronic applications. It offers bright LED illumination options in multiple colors, with a durable polycarbonate cap and sealed housing to meet IP65 standards for environmental protection. The switch operates with a resistive load rated at 3A at 125V or 250V AC, providing reliable tactile feedback and long mechanical and electrical life. Designed for easy installation and versatile use, it is suitable for panel mounting with various accessory options available.
NKK Switches LB26RGW01 Illuminated Pushbutton Switch Specifications:
- Housing Material: Polycarbonate, IP65 sealed
- Operation Voltage: 3A @ 125V or 250V AC, 0.4VA @ 28V AC/DC
- Illumination: Bright LED, Red, Amber, Green, Blue, White; with resistors or resistors-free options
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Contact Resistance: 50 milliohms max for silver; 100 milliohms max for gold
- Insulation Resistance: 200 megaohms min at 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V between contacts & case for 1 min
- Ambient Temp Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Dimensions: Standard size, panel cutout 0.638" x 0.638" (16.2mm x 16.2mm), depth varies
- Mounting: Snap-in, panel thickness 0.039” ~ 0.157” (1.0 ~ 4.0mm)
- Materials & Finishes: Polycarbonate cap, GFR Polyamide base, stainless steel clips
- Standards & Certifications: UL with recognition mark, CSA certification, meets IP65 specifications
Buy the Buy NKK Switches Series LB Illuminated Pushbuttons Part Number LB26RGW01 Online
Purchase the NKK Series LB illuminated pushbutton switch online today and enjoy the benefits of a reliable, sealed, and easy-to-install industrial switch. Featuring bright LED illumination options in various colors, rated at 3A, with long mechanical and electrical lifespan, this switch is perfect for demanding electronic and industrial environments. Its snap-in mounting ensures quick installation, while its IP65 rated housing offers protection against dust and water. Order now to enhance your control panel with a durable and versatile switch designed for optimal performance and ease of use.
Buy NKK Switches LB26RGW01 now and experience unmatched reliability and performance with durable IP65 sealed illumination switch for industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches LB26RGW01?
You can click on the BUY or RFQ button to purchase LB26RGW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26RGW01?
You can download the LB26RGW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26RGW01?
NKK Switches
