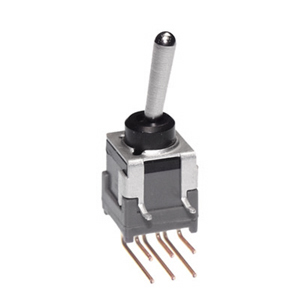

NKK Switches B2RAH Subminiature Toggle Switch
The B2RAH series toggle switch is a compact, subminiature switch engineered for high-precision, low-voltage applications. It features a sealed body construction to prevent contact contamination and supports static discharge prevention through antistatic superstructure. Designed for logic-level circuits, it offers reliable operation with up to 100,000 mechanical cycles and is suitable for space-constrained electronic assemblies, including PCB mounting with options for panel seal mounting. The switch's enhanced contact stability and smooth detent actuation ensure consistent performance in sensitive electronic systems.
NKK Switches B2RAH Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 min
- Mechanical Life: 100,000 operations
- Nominal Operating Force: 1.47N (long paddle) or 2.72N (short paddle)
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hrs @ 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm, 2 hours each direction
- Shock: 50G, tested in 6 directions
- Material: Nickel-plated brass, polyamide, nitrile rubber
- Mounting: Panel seal with threaded bushing, standard hardware for panel thickness up to 2.2mm
- Standards & Certifications: UL9AV-0, designed for low-voltage logic circuits
Buy the Buy NKK Switches Series B Subminiature Toggle Part Number B2RAH Online
Order NKK Switches Series B B2RAH online today to ensure your electronic projects benefit from high-quality, space-saving toggle switches with sealed construction and static discharge prevention. Designed for low-voltage, low-current logic-level circuits, these switches offer reliable performance, long mechanical life, and enhanced contact stability. Perfect for PCBs and panel mountings, they provide a trustworthy solution for sensitive and compact electronic systems. Experience quick delivery and support by purchasing directly from authorized online distributors, ensuring you get genuine, high-performance components for your applications.
Get NKK Switches Series B B2RAH today—built for precision, reliability, and long-lasting durability in space-constrained electronic assemblies.
Frequently Asked Questions
Where can I buy NKK Switches B2RAH?
You can click on the BUY or RFQ button to purchase B2RAH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B2RAH?
You can download the B2RAH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B2RAH?
NKK Switches
