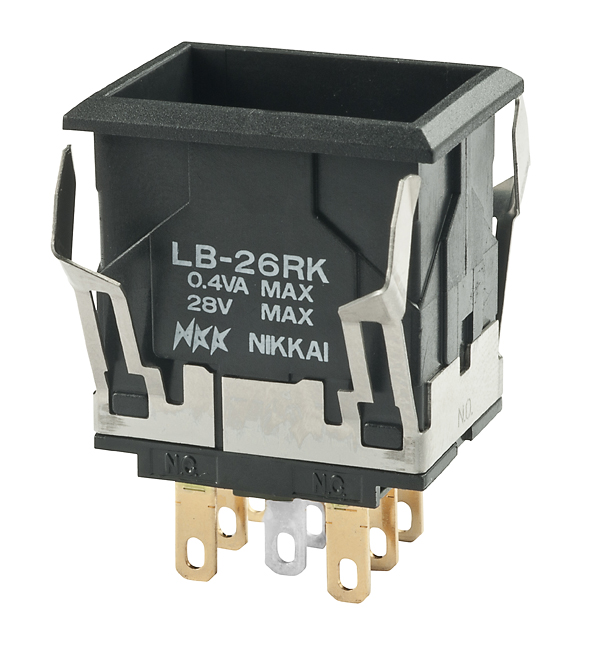

NKK Switches LB26RKG01 Illuminated Pushbutton
The illuminated pushbutton switch provides reliable operation with snap-in mounting, bright LED indicators, and durable construction. Suitable for control panels requiring visual status indication and quick installation, this switch features a compact design, long electrical life, and a wide operating temperature range. It is available with various LED colors and resistor options, offers IP65 sealing for protection against dust and water, and complies with safety standards. Ideal for industrial, automation, and machinery control applications requiring clarity and durability.
NKK Switches LB26RKG01 Illuminated Pushbutton Specifications:
- Power Level Silver: 3A @ 125/250V AC
- Power Level Gold: 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC min between contacts, 1,500V AC min between contacts & case
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Electrical Life: 100,000 operations minimum
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Pretravel & Overtravel: 1.5mm each, total travel 3.0mm
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contacts: Silver alloy or copper with gold plating
- Sealing: IP65 compliant with panel seal models
- Mounting: Snap-in clips compatible with various panel thicknesses
- LED Specifications: Bright, super bright, or spot illumination in various colors with resistor options
Buy the NKK Series LB Illuminated Pushbutton Switch: LB26RKG01
Order the NKK LB26RKG01 illuminated pushbutton switch online and enhance your control panel with reliable performance, bright LED indicators, IP65 sealing, and easy snap-in installation. Designed for industrial and automation settings, this switch offers long mechanical and electrical life, ensuring durability and safety. It supports various LED colors, resistor options, and mounting configurations, making it ideal for machinery, automation, and control systems. Purchase now for fast delivery and professional-grade quality.
Get NKK LB26RKG01 illuminated pushbutton switch today—built for durability and clear visual status indication in demanding control environments.
Frequently Asked Questions
Where can I buy NKK Switches LB26RKG01?
You can click on the BUY or RFQ button to purchase LB26RKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26RKG01?
You can download the LB26RKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26RKG01?
NKK Switches
