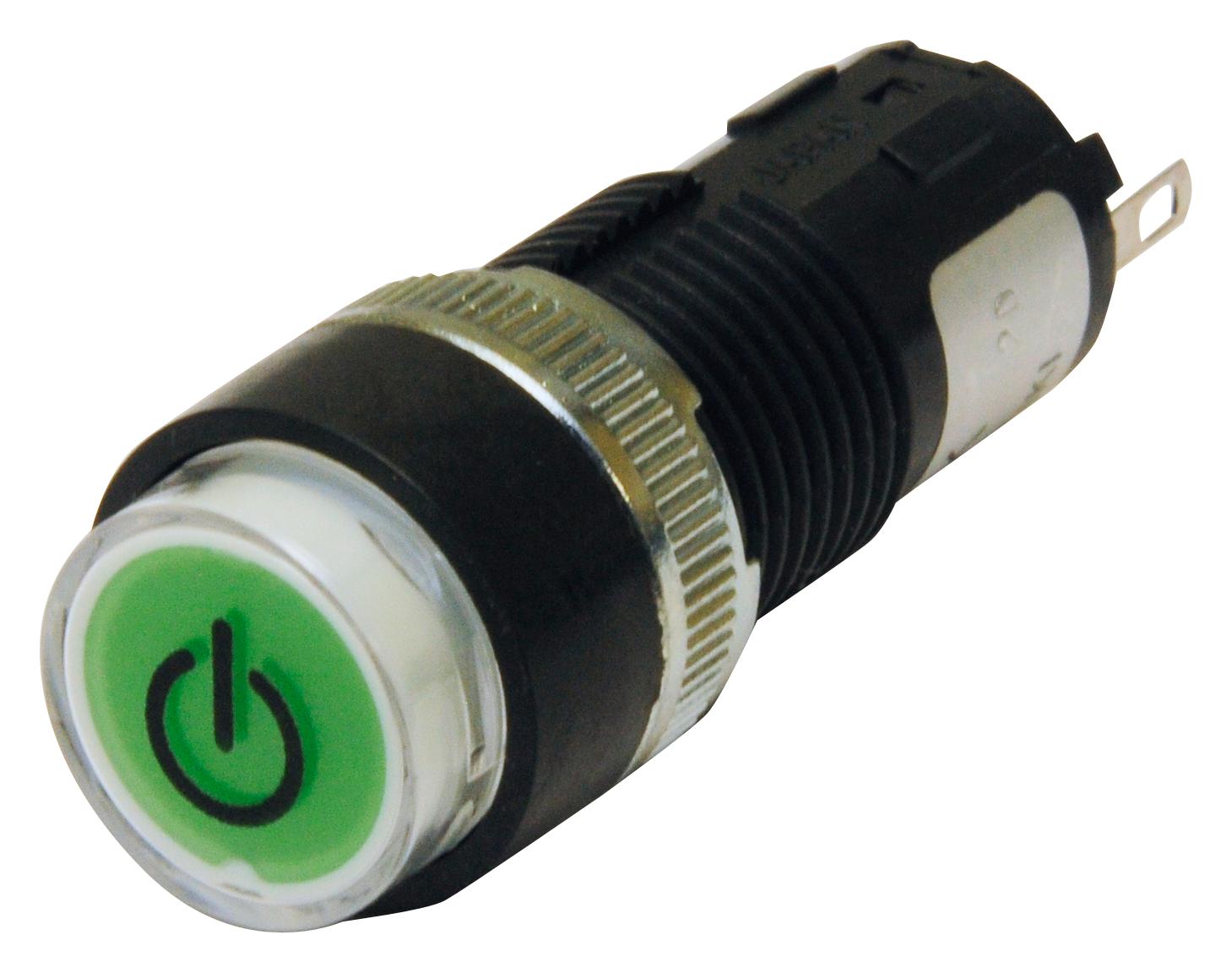

NKK Switches KB02VA001 Miniature Indicator
This miniature indicator features a durable polycarbonate lens with a green LED illumination for clear status indication. It has a round cap design with laser-etched legend and gloss finish, suitable for panel mounting in industrial, manufacturing, or control panel applications. The indicator operates within -25°C to +50°C temperatures, with high resistance to humidity, vibration, and shock, complying with UL94V-0 flammability standards. It includes specifications for electrical operation, mounting, and environmental durability, making it ideal for reliable visual signaling in various control and automation systems.
NKK Switches KB02VA001 Miniature Indicator Specifications:
- Housing Material: Polyamide UL94V-0
- Lens Material: Polycarbonate, Glossy Finish
- Legend Color: Black, Laser Etched
- LED Color: Green
- Forward Voltage: 2.1V
- Max Forward Current: 30mA
- Ambient Temperature Range: -25°C to +50°C
- Mounting Torque: 0.78Nm
- Panel Cutout Diameter: 12.3mm
- Operating Humidity: 90-95% for 96 hours at 40°C
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Shock Resistance: 50G acceleration
- Soldering Temperature: 390°C for 4 seconds, 2 cycles
- RoHS Compliant
- Flammability Standard: UL94V-0
Buy the Buy IndustrySwitch Miniature Indicator Part Number KB02VA001 Online
Purchase the IndustrySwitch miniature indicator KB02VA001 online to ensure precise visual signaling in industrial applications. Featuring a green LED, durable polycarbonate lens, and laser-etched legend, it provides high visibility and environmental resistance. Designed for panel mounting with a 12.3mm diameter cutout, this indicator withstands vibration, shock, and humidity, operating efficiently from -25°C to +50°C. Easy soldering and RoHS compliance make it suitable for manufacturing and automation projects. Order now for dependable quality in your control systems.
Order your IndustrySwitch Series KB02VA001 miniature indicator today and enhance your control panels with reliable LED signals for industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches KB02VA001?
You can click on the BUY or RFQ button to purchase KB02VA001 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KB02VA001?
You can download the KB02VA001 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KB02VA001?
NKK Switches
