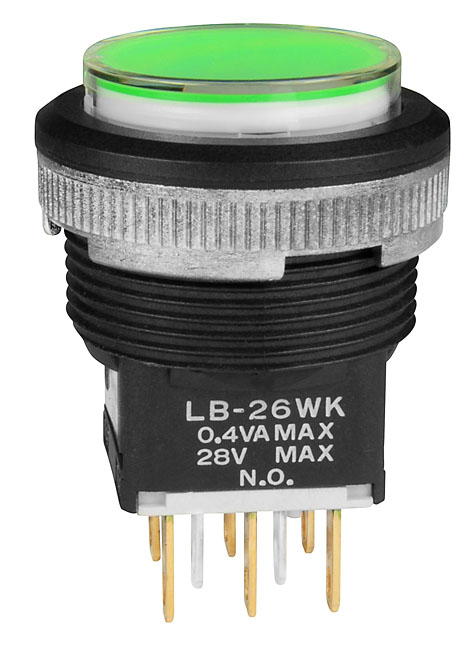

NKK Switches LB26WKG015FJF Illuminated Pushbutton Switch
This standard size illuminated pushbutton switch features a waterproof housing with front panel relamping and bright diffusion for full surface illumination. It offers multiple LED color options including white, green, and blue, along with standard red, amber, and green LEDs. The switch has stainless steel clips for secure mounting across diverse panel thicknesses, plus a latchdown feature for circuit status indication. Its snap-action contact mechanism ensures long electrical life, responsiveness, and durability, meeting IP65 standards for versatile control and automation applications.
NKK Switches LB26WKG015FJF Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC or 3A @ 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC between contacts, 1500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum for momentary circuit
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Vibration & Shock: Meets ISO standards with 10-55Hz vibration, 50G shock
- Sealing: IP65 IEC60529 standard (similar to NEMA 4 & 13)
- Panel Thickness: 1.0mm to 4.0mm, splash cover recommended for panel thickness 1.0mm to 3.5mm
- Housing Color: Black
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Terminals: Solder lug and quick connect epoxy sealed
- Switch Shape: Round, SPDT ON-ON circuit
- Cap & LED Options: Clear cap with diffusers, various LED resistor options
Buy the Buy NKK Series LB Part Number LB26WKG015FJF Online
Get your NKK Series LB LB26WKG015FJF waterproof illuminated pushbutton now and improve your control systems with a durable, high-performance switch. Features include bright LED lighting options, IP65 sealing for harsh environments, stainless steel mounting clips suitable for various panel thicknesses, and a responsive snap-action mechanism ensuring long-lasting operation. Perfect for industrial automation, control panels, and machinery, this switch combines reliability with ease of installation. Buy online today and ensure your projects benefit from quality control components.
Order your NKK Series LB LB26WKG015FJF waterproof illuminated pushbutton today and enhance your control panel with reliable, high-quality switches.
Frequently Asked Questions
Where can I buy NKK Switches LB26WKG015FJF?
You can click on the BUY or RFQ button to purchase LB26WKG015FJF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26WKG015FJF?
You can download the LB26WKG015FJF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26WKG015FJF?
NKK Switches
