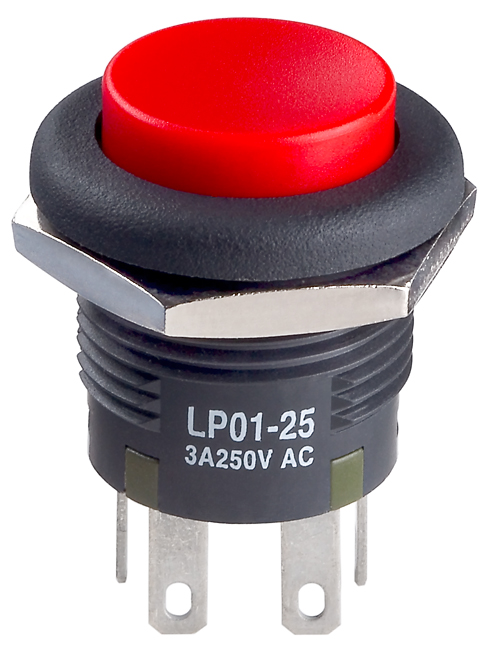

NKK Switches LP0125CCKW01C Short Body Pushbutton
This short, panel-mounted illuminated pushbutton offers easy operation and clear visual indication, ideal for control panels and machinery environments. It features a durable polycarbonate actuator, a sleek matte finish, and bright LED illumination in red, green, or amber for enhanced visibility. Designed with a snap-action contact mechanism, it ensures crisp actuation and circuit status clarity. The pushbutton is environmentally friendly, compatible with lead-free soldering, and meets RoHS standards. It utilizes a compact design with a short body of 0.551 inches, providing space-saving installation without sacrificing performance or reliability in demanding industrial applications.
NKK Switches LP0125CCKW01C Short Body Pushbutton Specifications:
- Power Level: 3A @ 125V AC/250V AC; 3A @ 30V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts; 1,500V AC minimum between contacts and case
- Mechanical Life: 500,000 operations minimum
- Electrical Life: 50,000 operations at 3A @ 125V/250V AC & 3A @ 30V DC
- Nominal Operating Force: 1.5N for Single Pole; 3.0N for Double Pole
- Total Travel: 0.118 inches (3.0mm)
- Materials: Actuator—Polycarbonate; Housing—Glass fiber reinforced polyamide (UL94V-0); Contact—Phosphor bronze with silver plating
- Lamp Terminals: Phosphor bronze with tin & copper plating
- Operating Temperature Range: 10°C to +50°C for Illuminated, -25°C to +70°C for Non-illuminated
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10-55Hz with 1.5mm amplitude, 2-hour duration
- Shock: 50G acceleration in multiple directions
- Mounting Torque: 0.8Nm
- Soldering: Manual, following Profile A guidelines
- Standards & Certifications: UL94V-0 flammability, UL recognized (File No. E44145), RoHS compliant
Buy the NKK Short Body Pushbuttons – Reliable Industrial Controls for Machinery
Purchase the NKK Series LPO1 Short Body Pushbutton online today for reliable industrial control solutions. Compact and durable, it features bright LED indicators in multiple colors, high electrical and mechanical lifespan, and compliance with industry standards. Ideal for space-constrained panels, it provides crisp actuation and visual status indication, ensuring safe and efficient operations across various machinery and automation systems. Trust NKK for durable, high-performance pushbutton switches that meet demanding industrial environment requirements, available now with simple online ordering.
Order your NKK Series LPO1 Short Body Pushbutton today and give your control panels the dependable quality they deserve with easy installation and bright LED illumination.
Frequently Asked Questions
Where can I buy NKK Switches LP0125CCKW01C?
You can click on the BUY or RFQ button to purchase LP0125CCKW01C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LP0125CCKW01C?
You can download the LP0125CCKW01C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LP0125CCKW01C?
NKK Switches
