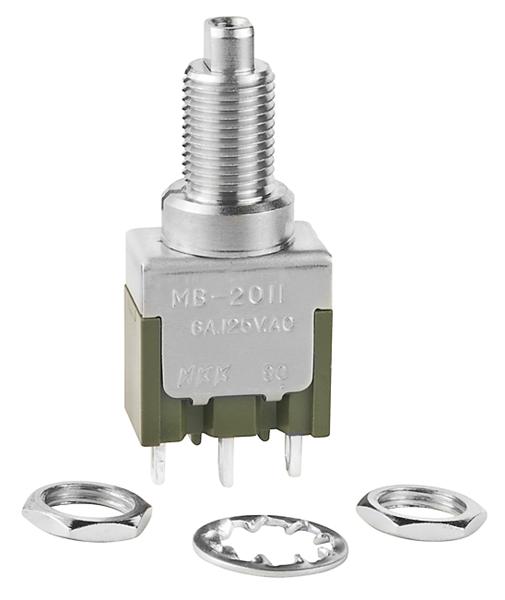

NKK Switches MB2011SS1W01 Miniature Pushbutton
The MB2000 series miniature pushbutton switch features a plunger designed for screw-on or snap-on caps. It has copper or brass terminals with a silver or gold finish to ensure reliable contact. The switch employs a guide interlocked with the actuator block, preventing window locking and maintaining proper plunger alignment for contact stability. Its high-torque bushing construction prevents rotation or separation from the frame during installation. Enhanced insulating barriers increase insulation resistance and dielectric strength. The terminals are epoxy-sealed to prevent ingress of solder flux and contaminants. Various bushings are available, and the switch uses an over-center actuator mechanism. It complies with UL94V-0 flammability ratings and operates within a temperature range of -30°C to 85°C. Suitable for industrial applications.
NKK Switches MB2011SS1W01 Miniature Pushbutton Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1500V AC between contacts & case for 1 min
- Electrical Life: 50,000 operations for silver, 100,000 for gold
- Operating Temp Range: -30°C to +85°C
- Mechanical Life: 50,000 operations for silver, 100,000 for gold
- Mounting Torque: 1.5 Nm
- Case Material: Diallyl phthalate resin UL94V-0
- Bushing Material: Brass with nickel plating
- Terminal Material: Silver alloy, copper with gold plating, or silver with gold plating
- Sealing: Epoxy sealed terminals, splashproof options available with O-ring in bushing
- Standards & Certifications: UL Recognized, CSA Certified
- Environmental Resistance: 90-95% humidity for 96 hours, vibration 10-55Hz with amplit. 1.5mm, shock 50G
Buy the NKK Series MB2000 Miniature Pushbutton: MB2011SS1W01
Order the NKK MB2011SS1W01 miniature pushbutton switch online today to ensure quick delivery. Designed for durability and precision, it features epoxy-sealed terminals and robust high-torque bushings, making it ideal for industrial control panels. With UL recognition and CSA certification, this switch guarantees safety and compliance. Its dual sealing options resist splashes and contaminants, ensuring long-term performance in harsh environments. Purchase now for reliable, high-performance switching in your automation and control systems with easy online ordering and fast shipping.
Buy NKK MB2011SS1W01 miniature pushbutton switch now and experience unmatched reliability and industrial-grade performance.
Frequently Asked Questions
Where can I buy NKK Switches MB2011SS1W01?
You can click on the BUY or RFQ button to purchase MB2011SS1W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2011SS1W01?
You can download the MB2011SS1W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2011SS1W01?
NKK Switches
