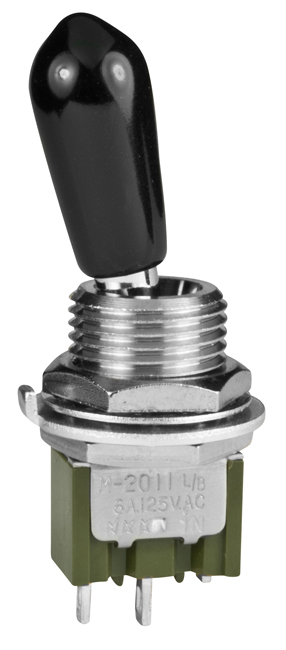

NKK Switches M2011B2B1W01VA Miniature Toggle Switch
This is a miniature toggle switch with multi-function capabilities, designed for compact electronic applications. It offers reliable operation and versatility for various circuit switching needs.
NKK Switches M2011B2B1W01VA Miniature Toggle Switch Specifications:
- Poles & Circuits: SPST, DPST, DPDT, 4PDT with various configurations
- Electrical Ratings: 6A at 125V AC, 3A at 250V AC, 0.4VA max at 28V DC
- Contact Resistance: 10 milliohms max for silver; 20 milliohms max for gold
- Insulation Resistance: Minimum 1,000 megohms at 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts; 1,500V AC contact to case
- Mechanical Life: Minimum 100,000 operations; 50,000 for flat/locking devices
- Environmental: Operating temperature -30°C to +85°C, humidity 90-95% @ 40°C, shock 50G, vibration 10-55Hz
- Materials: Brass with chrome plating, polycarbonate case, epoxy sealed terminals
- Mounting: Bushing mount with optional splashproof versions, torque 3.0Nm for large bushing
- Standards & Certifications: UL recognized, CSA certified, IP67 splashproof options
- Terminals: Solder Lug, Quick Connect, Wirewrap options with various sizes
- Certifications: UL File No. E44145, recognized at 6A @ 125V AC and 3A @ 250V AC
Buy the Buy NKK Series M Miniature Toggle Switch Part Number M2011B2B1W01VA Online
Purchase the NKK Series M miniature toggle switch online today to enjoy fast delivery and dependable performance. This versatile switch offers multiple circuit configurations, high durability with up to 100,000 operations, and certified safety standards. Engineered with high-quality materials like brass and polycarbonate, it is suitable for compact electronic devices requiring reliable on-off control. Whether for hobbyist projects or professional applications, order now and give your designs the designed-in reliability they deserve. Easy to install with various terminal options available.
Order your NKK Series M M2011B2B1W01VA miniature toggle switch today and ensure reliable circuit switching for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches M2011B2B1W01VA?
You can click on the BUY or RFQ button to purchase M2011B2B1W01VA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2011B2B1W01VA?
You can download the M2011B2B1W01VA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2011B2B1W01VA?
NKK Switches
