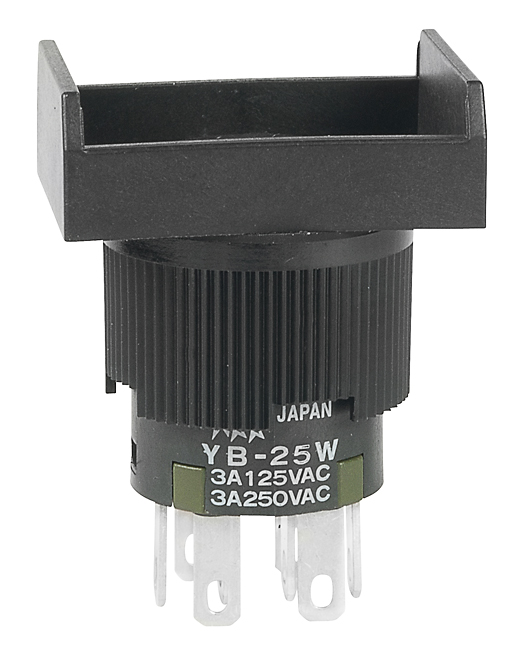

NKK Switches YB25WRKW01 Illuminated Pushbutton
This is an illuminated, short body pushbutton designed for panel mounting. It features a sealed construction to protect against dust and moisture, making it suitable for industrial and control panel applications.
NKK Switches YB25WRKW01 Illuminated Pushbutton Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 100.000 operations minimum
- Travel: Pretravel 0.059” (1.5mm); Overtravel 0.059” (1.5mm); Total Travel 0.118” (3.0mm)
- Housing/Bezel: UL94V-0 glass fiber reinforced polyamide
- Seal/Filter: Thermoplastic Elastomer
- Operating Temperature Range: -25°C through +50°C for illuminated, -25°C through +70°C for non-illuminated
- Mounting Torque: 0.785Nm (6.95 in-lb)
- Housing Color: Black, UL94V-0
- Certifications: UL recognized, CSA certified when ordered with specific markings
Buy the NKK Series YB LED Pushbuttons: YB25WRKW01
Enhance your automation or control panels with the NKK Series YB short body illuminated pushbutton. Featuring sealed construction for dust and moisture protection, it guarantees durability and reliable operation in industrial environments. Easy to install with a low mounting torque, this switch supports a high number of operations, making it ideal for demanding applications. Choose from various illumination options and color configurations to match your interface needs. Purchase online now for fast delivery and quality assurance.
Order your NKK Series YB25WRKW01 short body illuminated pushbutton today and ensure reliable control panel operation with sealed moisture-proof design.
Frequently Asked Questions
Where can I buy NKK Switches YB25WRKW01?
You can click on the BUY or RFQ button to purchase YB25WRKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB25WRKW01?
You can download the YB25WRKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB25WRKW01?
NKK Switches
