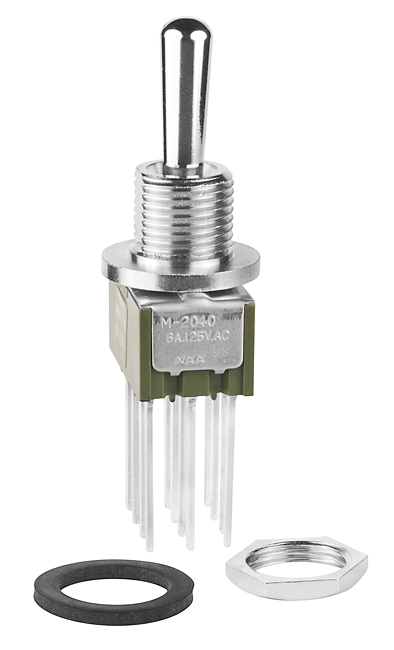

NKK Switches M2044B2B3W06 Miniature Toggle Switch
A miniature toggle switch with multi-function capabilities, suitable for various electronic applications. Compact and reliable for switching and control operations. Features include dual ratings for both power and logic circuits, high dielectric strength, and insulation barriers for enhanced circuit protection. Designed with corrosion-resistant materials, it withstands operating temperatures from -30°C to +85°C and meets UL, CSA standards. Mountable with standard hardware, it offers excellent electrical life and mechanical durability, making it ideal for automation, instrumentation, and control panel applications.
NKK Switches M2044B2B3W06 Miniature Toggle Switch Specifications:
- Poles & Circuits: 1, 2, 3, 4 pole configurations
- Electrical Ratings: 6A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V DC
- Contact Resistance: Max 10 milliohms for silver contacts
- Insulation Resistance: Min 1,000 megohms at 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V contact-to-case for 1 minute
- Mechanical Life: Min 50,000 operations
- Electrical Life: Min 50,000 operations at rated current
- Operating Temperature Range: -30°C to +85°C
- Vibration & Shock: Tested for 10-55Hz vibration, 50G shock
- Materials: Brass with chrome plating, polycarbonate case, epoxy sealed terminals
- Mounting Torque: 3.0 Nm for large bushings, 1.5 Nm for standard bushings
- Environmental: IP67 splashproof variants available, meets UL94V-0 flammability rating
- Standards: UL, CSA recognized and certified, IEC60529 IP67 for splashproof models
Buy the NKK Series M Miniature Toggle Switch: M2044B2B3W06
Order the NKK Series M miniature toggle switch today for reliable performance in switching, automation, and control circuitry. Designed with dual ratings for power and logic applications, it features high dielectric strength, epoxy sealed terminals, and IP67 splashproof variants. Made from corrosion-resistant materials, it withstands a temperature range of -30°C to +85°C. This compact switch offers excellent electrical and mechanical durability, ensuring long operational life. Perfect for instrumentation, automation, and control panels, it guarantees safety, reliability, and ease of installation for demanding electronic applications.
Get NKK Series M M2044B2B3W06 today—built for precision and long-lasting durability in control and switching applications.
Frequently Asked Questions
Where can I buy NKK Switches M2044B2B3W06?
You can click on the BUY or RFQ button to purchase M2044B2B3W06 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2044B2B3W06?
You can download the M2044B2B3W06 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2044B2B3W06?
NKK Switches
