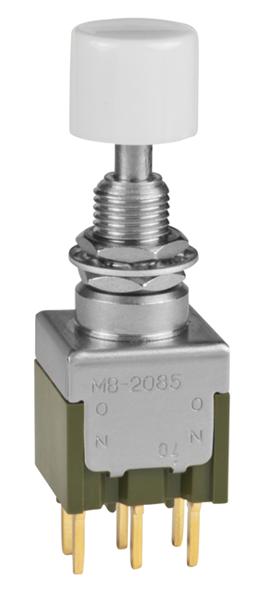

NKK Switches MB2085LD1G03CB Miniature Pushbutton Switch
A miniature pushbutton switch designed for multi-function applications. It offers reliable performance in compact electronic assemblies, suitable for various control and user interface functions.
NKK Switches MB2085LD1G03CB Miniature Pushbutton Switch Specifications:
- Current Rating: 6A @ 125V AC & 3A @ 250V AC
- Voltage Rating: 125V AC / 250V AC / 28V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1000 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC between contacts; 1500V AC between contacts & case
- Mechanical Life: 100,000 operations
- Electrical Life: 50,000 operations for silver, 100,000 for gold
- Operating Temperature: -30°C to +85°C
- Terminal Types: Solder Lug, Quick Connect
- Mounting Hardware: Hexagon Nut, Lockwasher, optional splashproof bushing
- Case Material: Diallyl phthalate resin UL94V-0, IP67 rated with specific bushings
- Sealing & Durability: Epoxy sealed terminals, splashproof options available
Buy the NKK MB2085LD1G03CB – Reliable Miniature Pushbutton for Industrial Applications
Order the NKK miniature pushbutton switch online today to ensure your control panels operate smoothly with top reliability. Perfect for industrial automation, this compact switch provides excellent durability, electrical performance, and ease of installation. Whether for new designs or replacements, buying online gives you quick access to high-quality switches with reliable ratings up to 6A @ 125V AC and 3A @ 250V AC. Enhance your electronic systems with trusted switches made for demanding environments. Purchase now and ensure seamless control operations.
Buy NKK MB2085LD1G03CB now and experience unmatched reliability and performance in your electronic control systems.
Frequently Asked Questions
Where can I buy NKK Switches MB2085LD1G03CB?
You can click on the BUY or RFQ button to purchase MB2085LD1G03CB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2085LD1G03CB?
You can download the MB2085LD1G03CB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2085LD1G03CB?
NKK Switches
