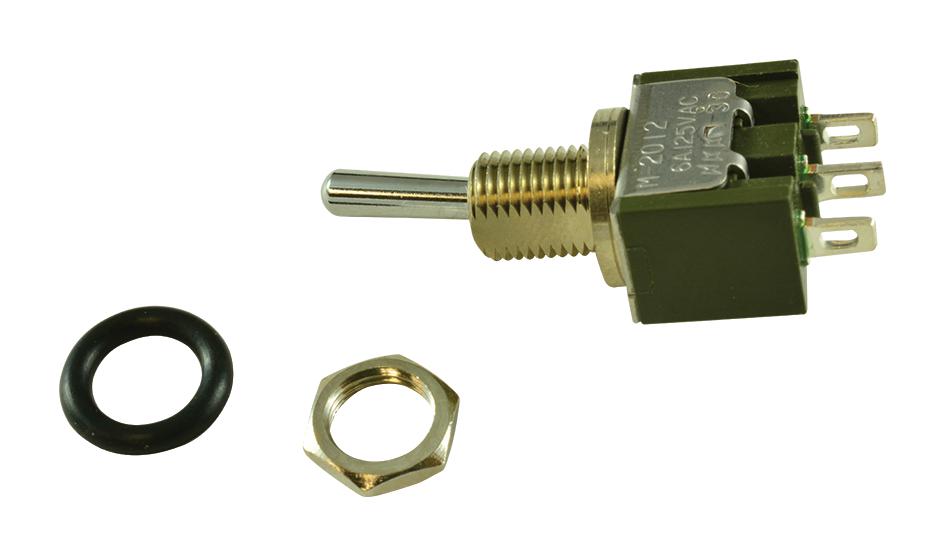

NKK Switches M2012SD3W01 Miniature Toggle Switch
The Series M Miniature Toggle switch features a robust brass construction with chrome plating, high insulating barriers, and an antirotation design, ensuring durability and reliable operation. Suitable for both power and logic circuits, it supports resistive loads up to 6A at 125V AC and features epoxy-sealed terminals for contamination protection. The toggle operates with an angle of throw of 25°, and options include splashproof bushings with IP67 rating. Designed for panel mounting, these switches have a UL94V-0 rated case, high dielectric strength, and mechanical longevity for industrial and automation applications.
NKK Switches M2012SD3W01 Miniature Toggle Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC
- Contact Resistance: 10 milliohms maximum for silver, 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum for flat, locking, splashproof devices
- Angle of Throw: 25°
- Materials: Brass with chrome plating; case: UL94V-0 polycarbonate; bushing options include stainless steel and brass with nickel or tin plating
- Operating Temp Range: -30°C to +85°C
- Vibration & Shock Resistance: 10-55Hz, 50G acceleration
- Sealing: Splashproof options meet IP67 IEC60529 standards
- Mounting Torque: 3.0Nm for large bushings, 1.5Nm and 0.7Nm for smaller bushings
- Standards & Certifications: UL, CSA, recognized and certified as specified
- Soldering & Cleaning: Wave and manual soldering procedures suitable
- Additional Features: Antirotation, high insulation barriers, epoxy sealed terminals
Buy the NKK Series M Toggle Switch: M2012SD3W01
Purchase the Series M miniature toggle switch online today. Designed with high-quality materials including epoxy-sealed terminals and splashproof bushings, it supports resistive loads up to 6A at 125V AC and provides long-lasting performance. With antirotation features, high insulation barriers, and compliance with UL and CSA standards, this switch is ideal for automation, industrial equipment, and control panels. Ensure your applications operate reliably and safely by ordering this dependable toggle switch online now.
Get NKK Series M toggle switch today—built for durability and reliable performance in industrial applications.
