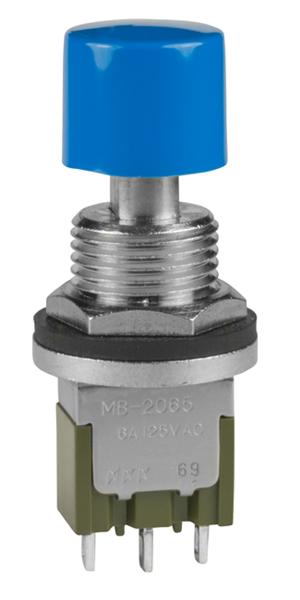

NKK Switches MB2065SB3W01DG Miniature Pushbutton Switch
This miniature pushbutton switch offers reliable performance for electronic devices, featuring a compact design with a 12mm threaded bushing, silver contacts rated at 6A, and solder lug terminals. Suitable for various applications, it provides easy installation and durable operation. Available with optional accessories such as splashproof boots, different cap colors, and mounting options including round and rectangular shrouds. Its versatile configuration supports multiple circuits, including SPDT, DPDT, and A4PDT, making it ideal for user interface controls, automation systems, and electronic control panels.
NKK Switches MB2065SB3W01DG Miniature Pushbutton Switch Specifications:
- Bushing Diameter: 12mm threaded with keyway
- Contact Material: Silver over Silver
- Contact Ratings: 6A @ 125V AC, 3A @ 250V AC, 0.4VA max @ 28V AC/DC
- Terminals: Solder lug, quick connect, or extended PC
- Cap Diameter: 8.0mm, 10.0mm, 13.2mm, 19.0mm options
- Cap Colors: Black, White, Red, Amber, Yellow, Green, Blue, Gray
- Plunger Types: Screw-on caps, wirewrap, quick connect
- Switch Mounting: Round or rectangular shrouds available
- Ratings and circuit configurations vary: SPDT, DPDT, A4PDT
- Material: Polycarbonate caps, brass or steel hardware
- Maximum Panel Thickness: 5.5mm
- Compatibility: Mounting accessories available, splashproof options
Buy the Buy Compact Pushbutton Switch Part Number MB2065SB3W01DG Online
Purchase the MB2065SB3W01DG miniature pushbutton switch online to ensure high-quality performance for your electronic projects. Featuring a 12mm threaded bushing and silver contacts rated at 6A, this switch offers durable, reliable operation suited for control panels and automation systems. Its versatile mounting options include round and rectangular shrouds, with various cap colors and plunger types. Easy to install with solder lug terminals, it supports multiple circuit configurations such as SPDT and DPDT, making it ideal for user interface controls and electronic device controls. Buy now for long-lasting, dependable performance.
Get MB2065SB3W01DG today—designed for reliable operation and versatile mounting options in electronic controls.
Frequently Asked Questions
Where can I buy NKK Switches MB2065SB3W01DG?
You can click on the BUY or RFQ button to purchase MB2065SB3W01DG from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2065SB3W01DG?
You can download the MB2065SB3W01DG datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2065SB3W01DG?
NKK Switches
