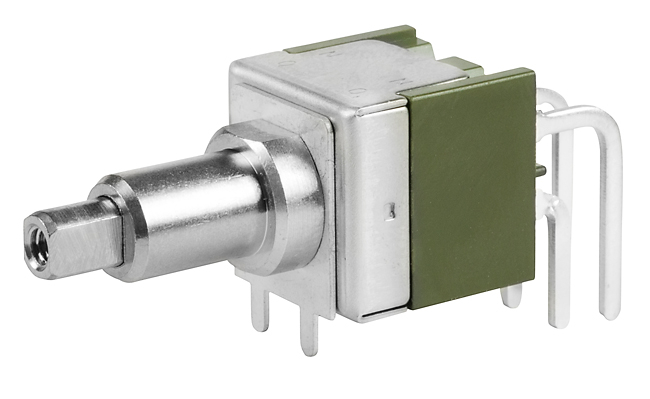

NKK Switches MB2085SS2W30 Miniature Pushbutton Switch
This is a miniature pushbutton switch that offers multiple functions, suitable for various electronic and electrical applications. Its compact design makes it ideal for panel mounting and space-constrained projects.
NKK Switches MB2085SS2W30 Miniature Pushbutton Switch Specifications:
- Electrical Capacity: 6A @ 125V AC & 3A @ 250V AC or 0.4VA max @ 28V DC
- Contact Resistance: 10 milliohms for silver; 20 milliohms for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 50,000 operations minimum for splashproof models; 100,000 for others
- Electrical Life: 25,000 operations minimum for silver; 50,000 for gold
- Operating Temp Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration Resistance: 10-55Hz with peak-to-peak amplitude of 1.5mm for 2 hours
- Shock Resistance: 50G acceleration in 6 directions with 5 shocks each
- Mounting Torque: 1.5 Nm for double nut, 0.7 Nm for single nut
- Switching Mechanism: Over-center actuator to reduce sparking
- Material: Brass with nickel plating, polyacetal with B1 bushing, stainless steel
- Sealing: Bushing options IP67 (D3, B3), with o-rings for splashproof models
- Standards: UL Recognized, CSA Certified, UL94V-0 plastic case
Buy the Buy NKK Series MB2000 Miniature Pushbutton Part Number MB2085SS2W30 Online
Purchase the NKK Series MB2000 MB2085SS2W30 miniature pushbutton switch online now to ensure your projects benefit from durable, high-quality switching performance. Its compact and robust design is perfect for space-limited applications. With proven electrical ratings and standards compliance, it guarantees dependable switching with a long mechanical and electrical lifespan. Simplify your procurement process by ordering directly online and enjoy fast delivery, comprehensive technical support, and competitive pricing for your automation, electronic, or control system needs.
Order your NKK Series MB2000 MB2085SS2W30 miniature pushbutton today and secure reliable operation for your electronic and electrical projects.
Frequently Asked Questions
Where can I buy NKK Switches MB2085SS2W30?
You can click on the BUY or RFQ button to purchase MB2085SS2W30 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2085SS2W30?
You can download the MB2085SS2W30 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2085SS2W30?
NKK Switches
