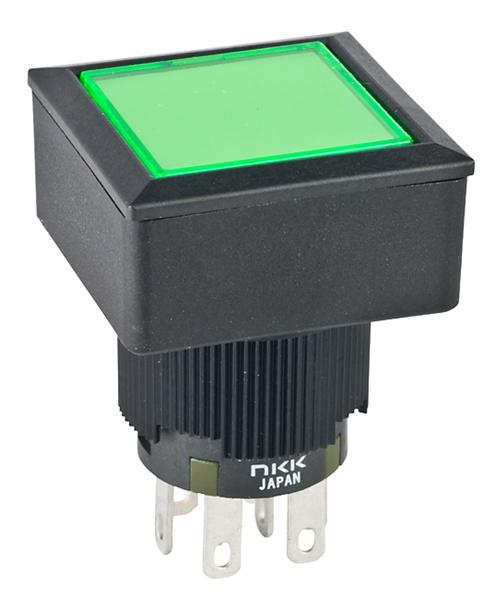

NKK Switches YB215CWSKW01CUL5F24FB Panel Seal Pushbutton
This pushbutton switch features a square actuator with IP65 splashproof and dust-proof protection, ideal for industrial and control panel applications. It includes a bright green LED indicator for clear circuit status display, and its green-white cap provides a sleek appearance. The switch offers a flexible mounting with solder lug or quick connect terminals and resistive load capacity up to 3A at 125/250V AC. The durable construction employs UL94V-0 rated materials, ensuring longevity and reliability in demanding environments. Suitable for panel mounting with a compact profile and reinforced sealing against contaminants.
NKK Switches YB215CWSKW01CUL5F24FB Panel Seal Pushbutton Specifications:
- Contact Rating: 3A @ 125/250V AC
- Power Level: 3A @ 125V AC or 3A @ 250V AC
- Leakage Current: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver contacts
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1000V AC min between contacts for 1 min, 1500V between contacts & case
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Operating Temperature Range: -25°C to +70°C
- Housing Material: UL94V-0 rated polyamide
- Bezel Color: Green or metallic silver
- Mounting Torque: 0.785Nm
- Soldering Temperature & Time: Up to 390°C for 4 sec
- Ingress Protection: IP65 according to IEC60529
- Terminal Types: Solder lug or .110” quick connect
- Contact Type: Normally Open, with panel seal
- Cap Colors: Green/White, Red/White, Amber/White, Clear/White
- Switch Type: Momentary or alternate action with latchdown
- Dimensions: Compact square body suitable for panel thickness 0.020
Buy the NKK Series YB2 Panel Seal Pushbutton: YB215CWSKW01CUL5F24FB
Purchase the NKK Series YB2 Panel Seal Pushbutton online today and enjoy high reliability, IP65 splashproof protection, and bright LED indicators for clear status signalization. This durable switch features a square actuator with quick connect or solder lug terminals, rated for 3A at 125V or 250V AC, making it ideal for industrial control applications. Its UL94V-0 rated polyamide construction ensures longevity in demanding environments. Easy to install with a compact profile, it combines robust sealing, vibrant LED indicator options, and versatile contact configurations, perfect for controlling equipment efficiently and safely.
Get NKK YB215CWSKW01CUL5F24FB today—built for durability, splashproof and with bright LED indicators for reliable industrial operation.
Frequently Asked Questions
Where can I buy NKK Switches YB215CWSKW01CUL5F24FB?
You can click on the BUY or RFQ button to purchase YB215CWSKW01CUL5F24FB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB215CWSKW01CUL5F24FB?
You can download the YB215CWSKW01CUL5F24FB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB215CWSKW01CUL5F24FB?
NKK Switches
