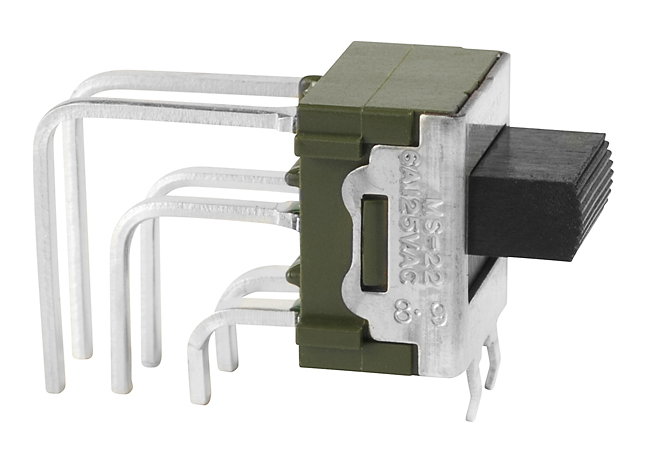

NKK Switches MS22BSW40 Miniature Slide Switch
This miniature slide switch provides reliable on/off switching with a compact design ideal for electronic devices. Suitable for PCB mounting and soldering, it features high contact reliability, insulating barriers, and certification for safety standards. Its construction ensures durability with a mechanical life of over 100,000 operations and is rated for 6A at 125V AC or 3A at 250V AC. The switch includes sealed terminals, glass fiber reinforced resin case, and silver or gold contact options, making it perfect for precise control in electronic circuits.
NKK Switches MS22BSW40 Miniature Slide Switch Specifications:
- Electrical Capacity: 6A @ 125V AC or 3A @ 250V AC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts and case for 1 min
- Mechanical Life: 100,000 operations minimum
- Environmental Operating Temp: -30°C to +85°C
- Humidity Resistance: 90-95% for 96 hours @ 40°C
- Vibration & Shock: 10-55Hz, 50G acceleration
- Actuator Material: UL94V-0 rated resin
- Terminals: Glass fiber reinforced epoxy sealed
- Mounting: PCB or solder lug
- Contact Material: Silver or gold alloy
- Certification: UL, CSA recognized
- Soldering: Wave or manual soldering recommended
Buy the NKK Series MS Miniature Slide Switch: MS22BSW40
Purchase the NKK Series MS22BSW40 miniature slide switch online today for high-quality performance in your electronic applications. This switch features durable sealed terminals, rated for 6A at 125V AC, with options for silver or gold contacts for improved reliability. Its compact design fits easily into PCB mounting schemes, suitable for precise on/off control in various devices. Enjoy fast delivery and trusted quality that ensures your electronics operate smoothly and safely with this versatile switching component.
Order your NKK Series MS22BSW40 miniature slide switch today and ensure reliable circuit control for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches MS22BSW40?
You can click on the BUY or RFQ button to purchase MS22BSW40 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MS22BSW40?
You can download the MS22BSW40 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MS22BSW40?
NKK Switches
