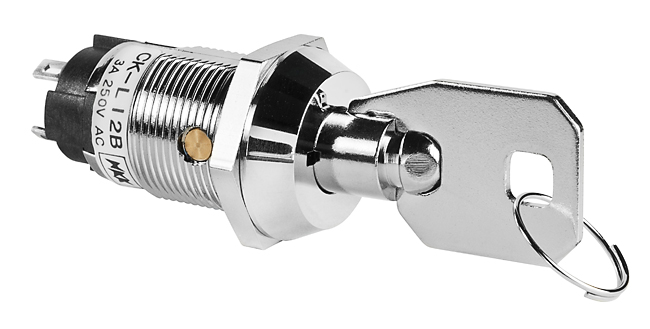

NKK Switches CKL12BTW01018 High Security Key Lock
The high security key lock features solder lug terminals for secure wiring, durable construction, and versatile design suitable for demanding locking applications. It offers resistive load capacity of 3A @ 250V AC, high dielectric strength of 1500V between contacts and case, and is built with robust materials including brass with nickel plating and glass fiber reinforced plastic. Designed for long-lasting operation, it withstands temperatures from -25°C to +70°C, humidity up to 95%, and vibrations up to 10-55Hz. Ideal for industrial security and automation systems requiring dependable locking mechanisms.
NKK Switches CKL12BTW01018 High Security Key Lock Specifications:
- Electrical Capacity: 3A @ 250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC between contacts and case for 1 minute
- Operating Temperature Range: -25°C to +70°C
- Humidity: 90-95% for 96-240 hours
- Vibration: 10-55Hz, peak-to-peak amplitude of 1.5mm (CKM) or 0.7mm (CKL)
- Shock: 50G (CKM), 30G (CKL)
- Mounting Torque: Not specified
- Soldering: Manual soldering according to profile specifications
- Housing Material: Brass with nickel plating (CKM), chrome plating (CKL)
- Bushing Diameter: 16mm (CKM) or 19mm (CKL)
- Bushing Material: Brass with nickel or chrome plating
- Key Types: Tubular and flat, reversible flat key
- Environmental Resistance: Withstands static discharge over 15kV, various shock and vibration tests
Buy the Buy High Security Keylocks Series CKL12BTW01018 Online
Order the high security key lock series CKL12BTW01018 online today and experience reliable locking performance in industrial applications. Designed with solder lug terminals and robust materials, it ensures durable and secure operation. Suitable for demanding environments, it withstands harsh temperature ranges from -25°C to +70°C, humidity up to 95%, and mechanical shocks up to 50G. With high dielectric strength and corrosion-resistant finishes, this lock provides long-term security for automation, security, and industrial control systems. Purchase now for immediate secure solutions.
Get High Security Keylocks Series CKL12BTW01018 today—built for secure locking and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches CKL12BTW01018?
You can click on the BUY or RFQ button to purchase CKL12BTW01018 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CKL12BTW01018?
You can download the CKL12BTW01018 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CKL12BTW01018?
NKK Switches
