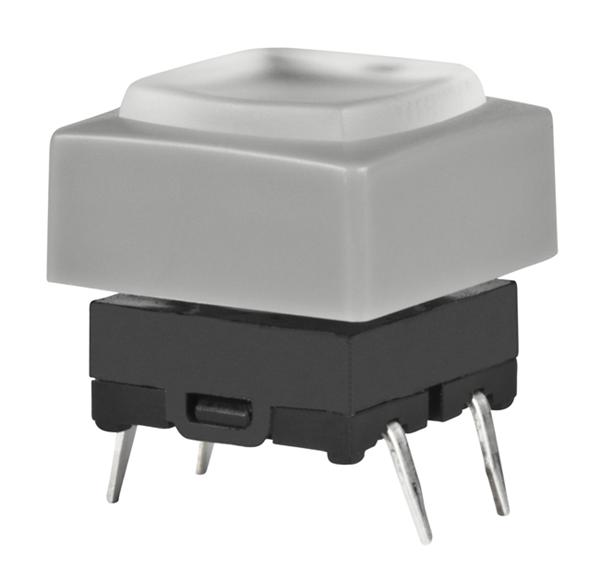

NKK Switches JB15KPBH Tactile Push-Button Switch
The JB Series tactile switches are designed for compact electronic applications, offering crisp tactile feedback to ensure circuit transfer. They are sealed, low-profile, and suitable for automated soldering and cleaning, making them ideal in demanding environments. Constructed with durable materials including PBT and polyamide, these switches feature high reliability with up to 5,000,000 operations. Their sealed design (IP67) prevents contamination, while various actuator options and custom legends enhance usability and versatility in electronic device assembly.
NKK Switches JB15KPBH Tactile Push-Button Switch Specifications:
- Electrical Capacity (Resistive Load): 50mA @ 24V DC (Standard), 125mA @ 24V DC (High Operating Force)
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 1.76N (standard), 2.65N (high force)
- Total Travel: 0.010" (0.250mm) or 0.012" (0.300mm)
- Actuator Material: Glass fiber reinforced PBT, Polyamide
- Case & Base: UL94V-0 rated polyamide
- Sealing: IP67 (IEC60529 standard)
- Operating Temperature Range: 25°C to +70°C
- Vibration: 10 to 55Hz, peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration
- Soldering: Wave, manual, automated cleaning compatible
- Standards & Certifications: UL9AV-0 rated case and base
Buy the Buy NKK JB Series Tactile Switch Part Number JB15KPBH Online
Order the NKK JB Series tactile switch online today for your electronic projects. This compact, sealed switch offers reliable tactile feedback, high durability with up to 5 million operations, IP67 sealing protection, and versatile actuator options. Perfect for automation, embedded systems, and space-constrained devices, it ensures lasting performance in rigorous environments. Easy to solder, clean, and customize with legends, this switch provides excellent reliability, making it a smart choice for your manufacturing or repair needs. Purchase now for immediate delivery and seamless integration.
Get NKK JB15KPBH today—built for precision, long-lasting durability, and sealed reliability in compact electronic designs.
Frequently Asked Questions
Where can I buy NKK Switches JB15KPBH?
You can click on the BUY or RFQ button to purchase JB15KPBH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JB15KPBH?
You can download the JB15KPBH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JB15KPBH?
NKK Switches
