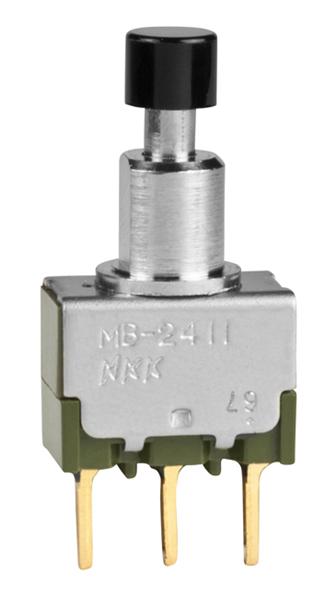

NKK Switches MB2411E2G03FA Miniature Pushbutton
This miniature pushbutton switch features snap-action, momentary operation, and a silver contact alloy for durability. It is designed for electronic and electrical control applications, offering smooth actuation, short stroke, and reliable contact closure. The switch has a compact threaded bushing with D Flat, multiple terminal options including solder lug and PC mounts, and is rated for 3A at 125V AC and 0.4VA at 28V AC/DC. Its corrosion-resistant stainless steel frame and epoxy sealed terminals ensure long-term performance in various environments. Suitable for customizable panel mounting across industries such as automation, instrumentation, and consumer electronics.
NKK Switches MB2411E2G03FA Miniature Pushbutton Specifications:
- Electrical Capacity: 3A @ 125V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 20 milliohms max for silver contacts
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute, 1,500V between contacts and case
- Mechanical Life: 200,000 operations, Electrical Life: 25,000 operations silver, 100,000 gold
- Nominal Operating Force: 18N maximum downward force
- Travel: Pretravel 0.6mm, Overtravel 0.4mm, Total travel 1.0mm
- Materials: Brass with nickel plating, Stainless steel frame, Polybutylene terephthalate (PBT) cover
- Operating Temperature: -30°C to +85°C
- Vibration & Shock: 10-55Hz, 50G acceleration
Buy the Buy NKK Series MB2400 Snap-Action Pushbutton Part Number MB2411E2G03FA Online
Purchase the NKK Series MB2400 miniature momentary pushbutton switch online now to enhance your automation and control projects. This durable switch features silver contacts rated for 3A at 125V AC and 0.4VA at 28V AC/DC. It incorporates corrosion-resistant stainless steel frames and epoxy sealed terminals. With multiple mounting options, including solder lug and PC mounts, it ensures flexibility and long-term reliability. Perfect for electronic systems requiring smooth actuation, quick response, and high durability, making it an excellent choice for industrial, commercial, or consumer applications.
Order your NKK Series MB2400 momentary pushbutton switch today and experience reliable performance with durable contacts and versatile mounting options.
Frequently Asked Questions
Where can I buy NKK Switches MB2411E2G03FA?
You can click on the BUY or RFQ button to purchase MB2411E2G03FA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2411E2G03FA?
You can download the MB2411E2G03FA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2411E2G03FA?
NKK Switches
