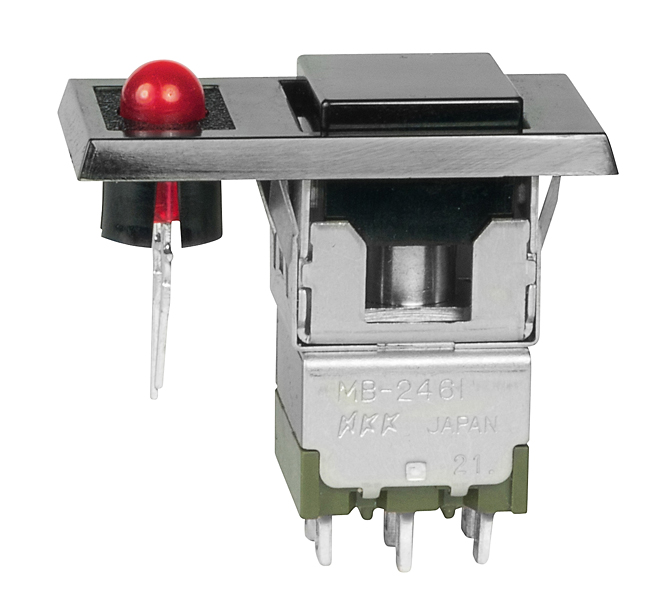

NKK Switches MB2461JW01A2AC miniature pushbutton switch
The miniature pushbutton switch is designed for momentary operation, offering reliable performance in electronic devices. It features a durable construction with silver contacts for longevity and corrosion resistance. Suitable for ON/OFF or control functions, it supports a current rating of 3A @ 125V AC and a maximum of 0.4VA @ 28V DC. The switch has a compact size, standard mounting features, and epoxy sealed terminals to prevent contamination. Its high mechanical and electrical life ensure durable, long-lasting operation in various industrial and electronic applications.
NKK Switches MB2461JW01A2AC miniature pushbutton switch Specifications:
- Electrical Capacity: 3A @ 125V AC
- Maximum Voltage: 28V DC
- Contact Resistance: 20 milliohms maximum for silver
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute
- Mechanical Life: 200,000 operations minimum
- Electrical Life: 25,000 operations minimum for silver contacts
- Nominal Operating Force: 80.0N downward force on actuator
- Travel: Pretravel 0.024” (0.6mm), Overtravel 0.016” (0.4mm), Total Travel 0.039” (1.0mm)
- Material: Brass with nickel plating, stainless steel
- Terminal Type: Epoxy sealed terminals, solder lug, PC mounting
Buy the NKK Series MB2400 – Reliable Pushbutton Switch for Industrial Applications
Order the NKK Series MB2400 miniature pushbutton switch online today to experience reliable performance and long-lasting durability. Ideal for electronic controls, this switch features epoxy sealed terminals for contamination resistance, a compact size for easy integration, and high mechanical and electrical life ratings. Whether used in industrial control panels or consumer electronics, it offers consistent operation with a 3A @ 125V AC capacity and corrosion-resistant silver contacts. Easy to install with standard mounting features, purchase now for dependable control solutions.
Buy NKK Series MB2400 miniature pushbutton switch now and enhance your control panel with a durable, reliable component capable of withstanding harsh environments and frequent actuation.
Frequently Asked Questions
Where can I buy NKK Switches MB2461JW01A2AC?
You can click on the BUY or RFQ button to purchase MB2461JW01A2AC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2461JW01A2AC?
You can download the MB2461JW01A2AC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2461JW01A2AC?
NKK Switches
