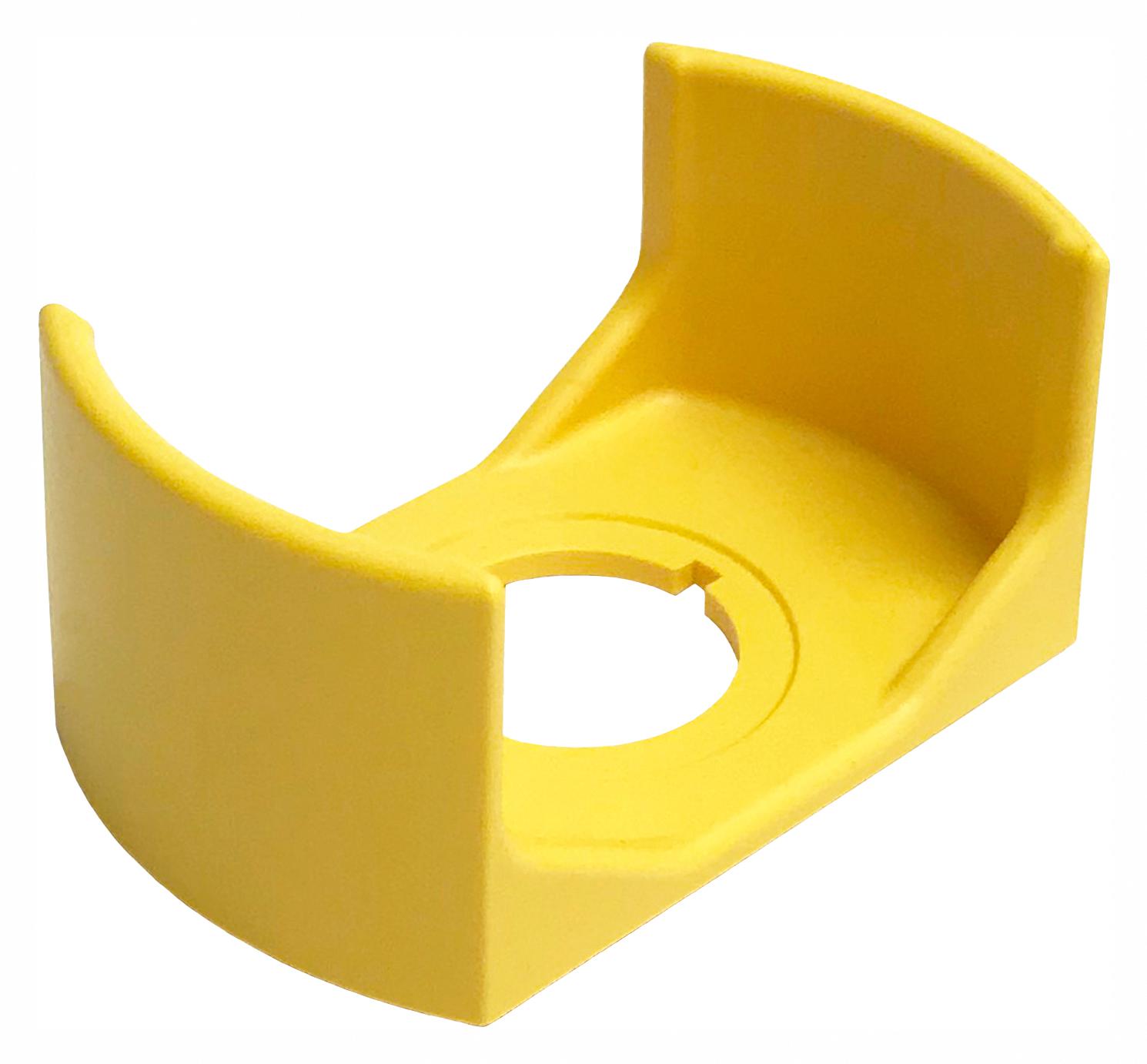

NKK Switches AT220 Low Profile Emergency Stop Switch
The FFO1 series low profile emergency stop switches feature an ultra-compact design with a depth of just 13.6mm behind the panel, making them ideal for dense layouts. They include a sliding latch mechanism ensuring secure contact resistance and special sealing for IP65 protection. Available in 25mm and 30mm actuator sizes, these switches support pull or turn reset methods, rated for 24V DC at 0.5A, suitable for industrial emergency stop applications, with robust vibration and shock resistance, and comply with safety standards SEMI S2 and ISO13850. Easy installation and maintenance make them perfect for manufacturing environments requiring reliable emergency stop controls.
NKK Switches AT220 Low Profile Emergency Stop Switch Specifications:
- Rated Operating Voltage: 24 VDC, 0.5 A
- Rated Insulation Voltage: 36 V DC
- Contact Resistance: 50 mΩ (initial)
- Sealing: IP65 front panel seal
- Suitable for panel thickness: 0.8 to 4.5 mm
- Operating Force: Push to lock 10.8 N, pull to reset 8.5 N, turn to reset 0.13 N-m
- Mechanical/Electrical Life: 100,000 (resistive), 6,050 (inductive) operations
- Operating Temperature: -45°C to +49°C
- Vibration Resistance: 10-500 Hz, 0.35mm amplitude
- Shock Resistance: 50 m/s^2
- Soldering Temperature: Max 390°C (within 4 seconds)
- Mounting torque: 785 mN·m
- Mounting panel cutout: 102mm x 170mm
- Applicable for industry standards: SEMI S2, ISO13850
Buy the NKK Switches FFO1 – Reliable Emergency Stop Switches for Industrial Applications
Purchase the NKK FFO1 series low profile emergency stop switch online now to ensure reliable safety in your industrial environment. Featuring a compact 13.6mm behind-panel depth, IP65 sealing, and choice of reset methods, these switches are perfect for dense control panels. Rated for 24V DC at 0.5A, they resist vibration and shock, providing long-lasting durability. Easy installation with standard panel cutout dimensions makes them suitable for various industrial applications, including manufacturing and automation equipment, ensuring safety compliance and operational reliability.
Get NKK Switches FFO1 series emergency stop switch today—built for safety, durability, and high-density panel installation.
Frequently Asked Questions
Where can I buy NKK Switches AT220?
You can click on the BUY or RFQ button to purchase AT220 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part AT220?
You can download the AT220 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of AT220?
NKK Switches
