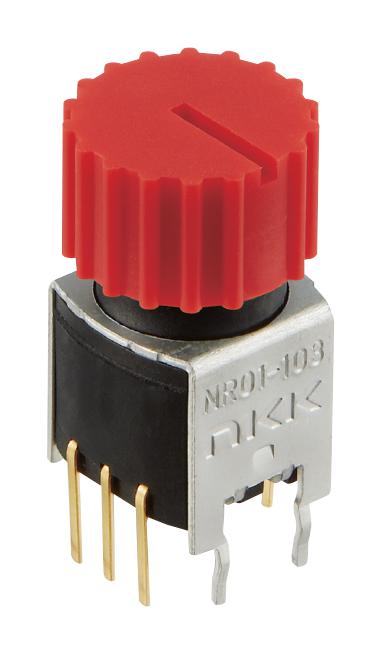

NKK Switches NR01103ANG131C Subminiature Process Rotary Switch
The NRO1 Series subminiature process sealed rotary switches are reliable components designed for high-density mounting in compact applications. They feature a crisp detent mechanism with a spring-operated steel ball for precise switch setting, and a totally sealed construction with internal O-ring and gasket for protection against contaminants. The switches support low-voltage, low-current logic-level circuits, making them suitable for power control, medical, communication, and measurement devices. Their durable materials and automated soldering compatibility ensure dependable performance in industrial environments.
NKK Switches NR01103ANG131C Subminiature Process Rotary Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA @ 28V AC/DC maximum
- Contact Resistance: 100 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Electrical Life: 30,000 cycles minimum
- Mechanical Life: 10,000 cycles minimum
- Operating Temperature Range: -25°C to +70°C
- Humidity: 90-95% RH for 96 hours at 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm in 3 directions for 2 hours
- Shock: 50G acceleration in 6 directions
- Soldering: Wave and manual soldering recommended with specific parameters
- Housing: Glass fiber reinforced polyester
- Base: Glass fiber reinforced polyamide
- Rotor: Polyacetal
- Contact Material: Beryllium copper, gold plated
- Terminals: Insert-molded, 2.54mm grid spacing
- Mounting brackets: Crimped legs for stability
Buy the NKK NRO1 – Reliable Rotary Switches for Industrial Applications
Purchase your NKK NRO1 series subminiature process sealed rotary switch online today to benefit from its high reliability, corrosion resistance, and precise detent mechanism. Perfect for power control, communication, and measurement applications, this compact switch features a totally sealed design with internal O-rings and gasket, making it suitable for harsh environments. The durable construction ensures long-lasting performance and easy automated soldering, reducing assembly time. Enhance your electronic projects with this high-quality, space-efficient rotary switch available for quick online ordering now.
Order your NKK NRO1 series rotary switch today and ensure reliable, precise, and compact control in your industrial projects.
Frequently Asked Questions
Where can I buy NKK Switches NR01103ANG131C?
You can click on the BUY or RFQ button to purchase NR01103ANG131C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part NR01103ANG131C?
You can download the NR01103ANG131C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of NR01103ANG131C?
NKK Switches
