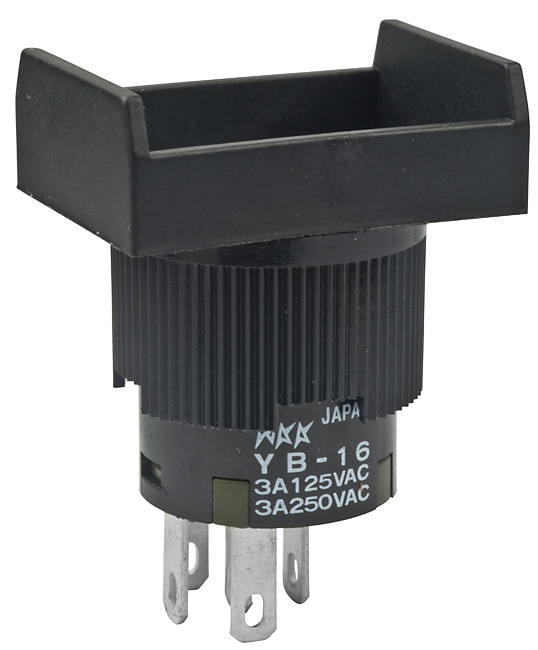

NKK Switches YB16RKW01 Illuminated Pushbutton
This illuminated pushbutton switch features a compact short body design, ideal for panel mounting in space-constrained environments. It offers built-in illumination with options for LED colors including red, green, and white, facilitating clear visibility. Designed for reliable operation, it includes a sealed housing to protect against dust and splashes, complying with IP65 standards. Its robust construction ensures long mechanical and electrical life, making it suitable for industrial control panels and machinery. The switch supports various mounting and terminal configurations, providing versatility across applications.
NKK Switches YB16RKW01 Illuminated Pushbutton Specifications:
- Housing Material: Polyamide, UL94V-0
- Illumination: Built-in LED (Red, Green, White)
- Mounting Type: Panel Mount
- Ingress Protection: IP65 (dust and splashproof)
- Electrical Ratings: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC between contacts for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Operating Temperature Range: -25°C to +50°C
- Terminal Types: Solder lug / Quick connect
- Mounting Torque: 0.785 Nm (6.95 in-lbs)
Buy the Buy Generic Short Body Illuminated Pushbutton Part Number YB16RKW01 Online
Purchase the reliable and compact illuminated pushbutton switch from our online store. Designed for panel mounting, it features built-in LED illumination in various colors, IP65 sealing for dust and splash protection, and supports long mechanical and electrical lifespan. Ideal for industrial control panels and machinery, this switch offers versatile terminal options and ensures durability in demanding environments. Order now to improve your project's control system with our high-quality, easy-to-install control component made for longevity and dependable operation.
Order your Generic SeriesYB Short Body Pushbutton YB16RKW01 today and enhance your control panels with dependable, space-saving illumination.
Frequently Asked Questions
Where can I buy NKK Switches YB16RKW01?
You can click on the BUY or RFQ button to purchase YB16RKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB16RKW01?
You can download the YB16RKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB16RKW01?
NKK Switches
