Series S medium capacity standard size toggles provide reliable switching with options for single and double pole configurations, solder lug, quick connect, and panel seal types. Designed for resistive and inductive loads up to 20A at 125V, these toggles feature chrome-plated brass, phenolic resin, and zinc-plated steel components for durability and environmental resistance. Suitable for panel mounting with specific torque and maximum panel thickness, they meet UL and CSA standards, with splashproof options for varied industrial and automation applications.
Electrical Capacity: 15A at 125V, 6A at 250V, 20A at 125V resistive & inductive loads
Contact Resistance: 10 milliohms maximum
Insulation Resistance: 1,000 megohms minimum at 500V DC
Dielectric Strength: 2,000V AC minimum for 1 minute
Mechanical Life: 30,000 to 50,000 operations depending on model
Material: Brass with chrome plating, phenolic resin, steel with zinc plating
Operating Temp Range: 30°C to +70°C; splashproof models IP67 rated
Mounting Torque: 1.47 Nm (13 in-lb) for single nut, 2.94 Nm (26 in-lb) for double nut
Maximum Panel Thickness: 0.158 inches (4.0 mm)
Soldering Temperature & Time: Refer to manual, manual soldering recommended
Standards & Certifications: UL Recognized, CSA Certified (with suffix), recognized for demanding industrial environments

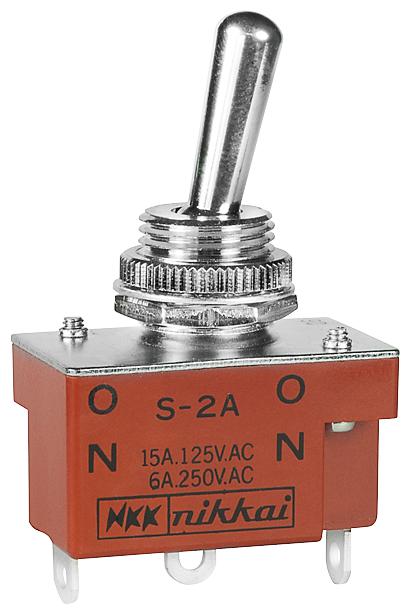

Buy the Buy NKK Medium Capacity Toggle Switch Part Number S2A Online
Discover the high-performance NKK Series S toggle switches available for online purchase. Designed for reliable operation in industrial environments, these switches support resistive and inductive loads up to 20A at 125V, with various configurations including single and double pole options, solder lug, quick connect, and IP67 splashproof variants. Certified by UL and CSA, they feature durable chrome-plated brass, phenolic resin, and steel components. Easy to install with specified torque and panel thickness limits, ensuring long-lasting performance and safety for your automation and control systems.
Order your NKK Series S toggle switch with panel seal today and ensure your industrial projects operate reliably with high-quality switching components.
Frequently Asked Questions
Where can I buy NKK Switches S2A?
You can click on the BUY or RFQ button to purchase S2A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S2A?
You can download the S2A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S2A?
NKK Switches
