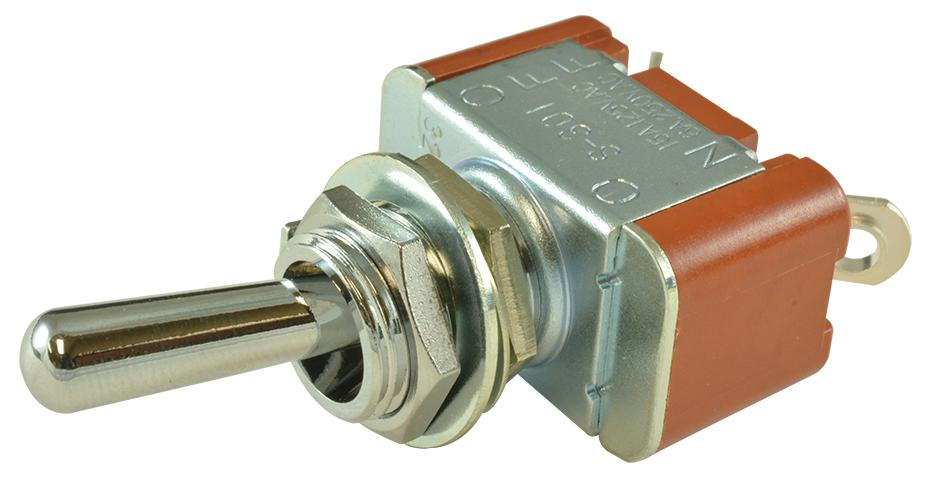

NKK Switches S301 Toggle Switch
The S301 is a standard-sized, panel-mount SPST toggle switch with no illumination, featuring an ON-None-OFF configuration and solder lug terminals. Made of durable materials such as chrome-plated brass for the toggle and bushing, with a PBT flatted lever, and a melamine phenol case cover, it offers high reliability. With a minimum of 50,000 mechanical cycles and 25,000 electrical cycles, it functions effectively between -10°C and 70°C, making it ideal for industrial control panels requiring robust, high-cycle switching performance.
NKK Switches S301 Toggle Switch Specifications:
- Electrical Capacity: 25A resistive at 125V, 20A at 250V, 10A at 30V
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Operating Temperature Range: -10°C to +70°C
- Materials: Toggle - Brass with chrome plating; Bushing - Brass with chrome plating; Case - Melamine phenol
- Case Cover: Steel with chromate plating over zinc plating
- Movable Contact: Copper with silver plating
- Stationary Contacts: Silver alloy capped on copper with silver plating
- Terminals: Brass with tin plating
- Mounting Torque: 2.94Nm (26 lbs-in)
- Maximum Panel Thickness: Shown in product dimension diagrams
- Soldering: Manual soldering per Profile A in the supplement section
