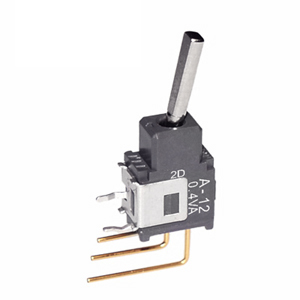

NKK Switches A12EV PCB Toggle Switch
This is a subminiature toggle switch designed for printed circuit board (PCB) mounting applications. It features a compact size suitable for space-constrained electronic devices, providing reliable on/off operation. The switch is sealed to prevent contact contamination, ensuring long-term performance. Made with durable materials, it supports high electrical capacity and mechanical life, making it ideal for logic-level circuits. It includes various configuration options such as single and double poles, different actuation angles, and terminal types, suitable for space-saving and reliable electronic system control.
NKK Switches A12EV PCB Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute between contacts and case
- Mechanical Life: 100,000 operations minimum for ON-None-On
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggles
- Contact Timing: Nonshorting (break-before-make)
- Materials: Glass fiber reinforced polyamide, nickel plated brass, phosphor bronze, gold plating
- Environmental: Operating temperature -30°C to +85°C, 90-95% humidity for 240 hours, vibration 10-55Hz
- Standards & Certifications: Not UL recognized or CSA certified
- Physical Dimensions: Compact size with terminal spacing 2.54 mm, various actuation angles, and configurations supported
Buy the NKK Series A PCB Toggle Switch: A12EV
Secure your space-saving PCB toggle switch online today. The NKK A12EV offers durable sealing, precise actuation, and reliable performance for all your electronic control needs. Ideal for low-voltage logic circuits, this switch ensures long-lasting operation with minimal contamination risk. With various configurations available, you can customize your setup for optimal functionality. Easy to install and maintain, ordering online guarantees quick delivery, enabling seamless integration into your electronic systems. Don't miss out—purchase now and enhance your device's reliability with this high-quality switch!
Buy NKK A12EV toggle switch now and experience unmatched reliability and performance for space-constrained electronic applications.
Frequently Asked Questions
Where can I buy NKK Switches A12EV?
You can click on the BUY or RFQ button to purchase A12EV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A12EV?
You can download the A12EV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A12EV?
NKK Switches
