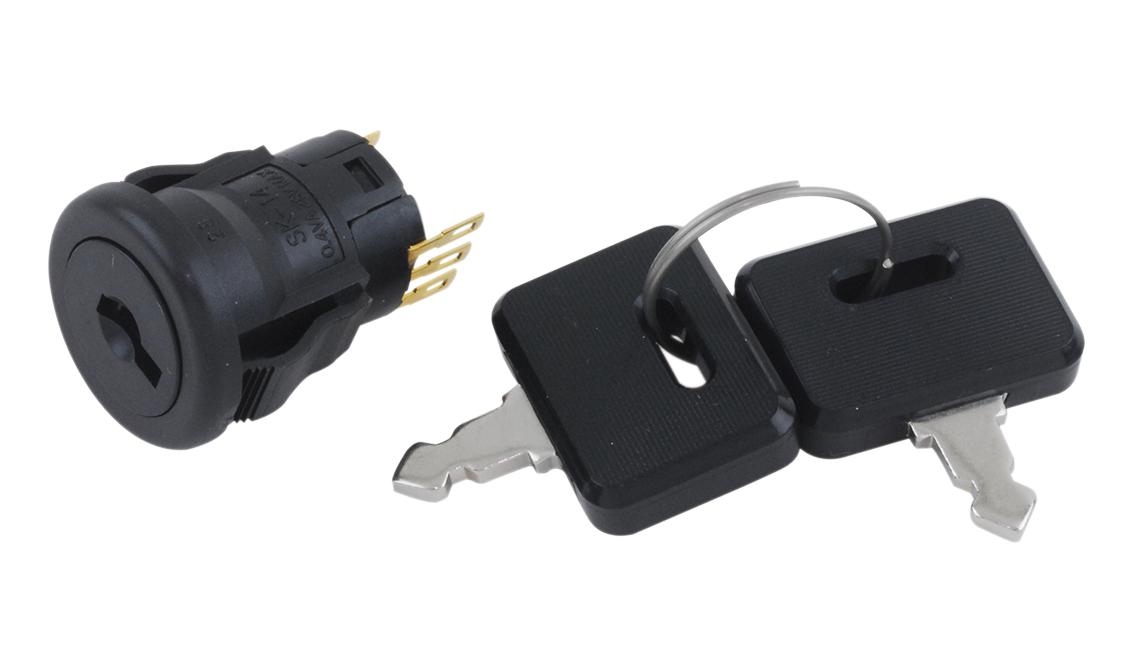

NKK Switches SK14DGMG01 Antistatic Keylock Switch
The series SK Antistatic Snap-in Keylock switch features a robust brass alloy construction with bright nickel plating and a glass fiber reinforced polyamide handle. It offers resistive load capacity up to 0.4VA at 28V AC/DC, with a contact resistance max of 100 milliohms and insulation resistance of 100 megaohms at 500V DC. Designed for low-voltage, low-current logic circuits, it withstands harsh environmental conditions with a temperature range from -40°C to +85°C, and humidity up to 95% for 240 hours. Its rugged construction ensures 30,000 operations minimum, and it’s suitable for panel mounting with specific cutout dimensions.
NKK Switches SK14DGMG01 Antistatic Keylock Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA at 28V AC/DC maximum
- Contact Resistance: 100 milliohms maximum
- Insulation Resistance: 100 megaohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum between contacts for 1 minute
- Operating Temperature Range: -40°C to +85°C
- Humidity Resistance: 90-95% for 240 hours @ 60°C
- Mechanical Life: 30,000 operations minimum
- Material: Brass alloy with bright nickel plating, glass fiber reinforced polyamide handle
- Panel Cutout Diameter: 18 mm or 19 mm with panel thickness range of 1.0mm to 2.0mm
- Switch Type: Snap-in, keylock, 2 or 3 positions, break-before-make, 45° angle of throw
- Environmental Testing: Vibration, shock, and humidity resistance according to standards
- Standards & Certifications: Not tested for UL or CSA, designed for low-voltage, low-current logic applications
Buy the NKK Series SK Antistatic Snap-in Keylock: SK14DGMGO1
Purchase the NKK Series SK14DGMGO1 Antistatic Keylock Switch online today and enjoy dependable switching performance in demanding environments. Constructed with durable brass and reinforced polyamide, this switch offers excellent resistance to humidity, temperature extremes, and mechanical wear. Its robust design supports up to 30,000 operations, making it ideal for low-voltage, low-current logic circuits. With easy snap-in mounting, it fits panel cutouts of 18 or 19 mm in diameter and can withstand harsh industrial conditions, ensuring long-lasting, reliable operation.
Order your NKK Series SK14DGMGO1 antistatic snap-in keylock switch today and ensure reliable control with high durability for your low-voltage projects.
Frequently Asked Questions
Where can I buy NKK Switches SK14DGMG01?
You can click on the BUY or RFQ button to purchase SK14DGMG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part SK14DGMG01?
You can download the SK14DGMG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of SK14DGMG01?
NKK Switches
