NKK Switches S48 Toggle Switch
The S48 is a 4-Pole Double Throw (4PDT), non-illuminated, medium to high-capacity panel-mount toggle switch. It features a standard size design with quick-connect terminals and a (ON)-OFF-(ON) switching function. The switch has a flat PBT lever, with all toggle parts made of chrome-plated brass. The bushing is also chrome-plated brass, and the case is constructed from phenolic with a chrome-plated zinc cover. It is designed for industrial applications and offers a minimum of 50,000 mechanical operations and 25,000 electrical operations. The operating temperature range spans from -10°C to 70°C.
NKK Switches S48 Toggle Switch Specifications:
- Electrical Capacity (Resistive & Inductive Load): 50,000 operations minimum
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum for 1 minute
- Materials & Finishes: Toggle - Chrome-plated brass, Bushing - Chrome-plated brass, Case - Phenolic, Case Cover - Zinc with chrome plating, Contacts - Silver alloy capped on copper with silver plating, Terminals - Brass with tin plating
- Operating Temperature Range: -10°C to 70°C
- Mounting Torque: 2.94Nm (26 lbsin)
- Maximum Panel Thickness: As shown in switch dimension drawings
- Soldering Method: Manual, see Profile A in Supplement section

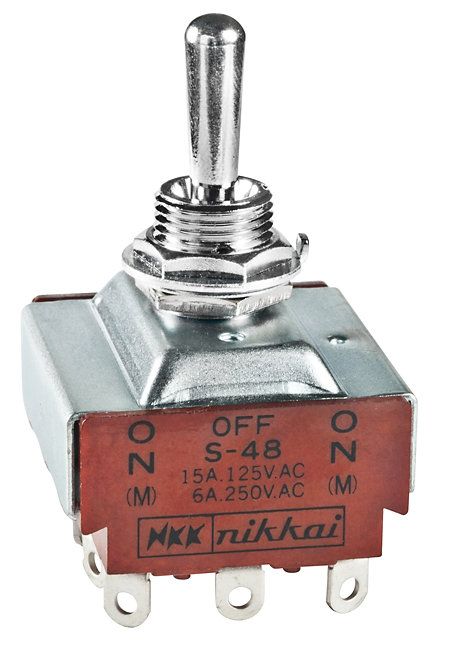

Buy the Buy NKK Toggle Switch Part Number S48 Online
Enhance your industrial equipment with the NKK Series S48 toggle switch, a robust 4-pole double throw switch designed for durability and reliable performance. With quick-connect terminals, chrome-plated brass components, and a broad operating temperature range from -10°C to 70°C, this switch ensures consistent operation over thousands of cycles. Its sturdy phenolic case and zinc cover protect against environmental factors, making it ideal for demanding applications. Achieve professional results by ordering online today and equip your project with top-quality switching solutions.
Order your NKK Series S48 toggle switch today and give your industrial projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches S48?
You can click on the BUY or RFQ button to purchase S48 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S48?
You can download the S48 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S48?
NKK Switches
