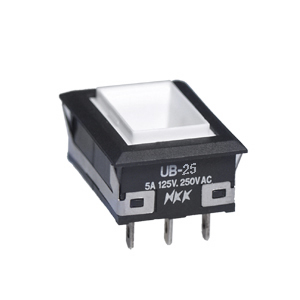

NKK Switches UB25NKW015F Illuminated Pushbutton Switch
A low-profile illuminated pushbutton switch designed for printed circuit board (PCB) mounting and soldering. This switch features a compact profile suitable for space-constrained applications, with integrated illumination for visibility and easy operation.
NKK Switches UB25NKW015F Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole SPDT, Double Pole available
- Mounting Type: PCB Mounting, Solder Lug or Straight PC Terminals
- Cap Types & Colors: Full Face or Spot Illumination, Red, Amber, Green, White, Blue, or Clear
- LED Specifications: Bright or Super Bright LEDs, 20-30 mA forward current, 1.85-3.2 V forward voltage
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: < 50 milliohms for silver, < 100 milliohms for gold
- Insulation Resistance: > 200 megohms @ 500V DC
- Dielectric Strength: 1000V AC between contacts for 1 min, 1500V AC between contacts and case
- Mechanical Life: minimum 1,000,000 operations (momentary), 200,000 (alternate action)
- Electrical Life: minimum 100,000 operations with resistive load
- Operating Temperature Range: -20°C to +70°C for non-illuminated, -25°C to +50°C for illuminated
- Contact Timing & Travel: Pretravel 0.067" (1.7mm), Overtravel 0.024" (0.6mm), Total Travel 0.091" (2.3mm)
- Material & Finishes: Housing/Bezel - UL94V-0 glass fiber reinforced polyamide; Contacts - Silver alloy or gold plated; Terminals - Silver alloy or copper with gold plating
- Environmental Durability: Vibration 3Hz-55Hz, 1.5mm amplitude, Shock 50G, Humidity 95% for 96 hours @ 40°C
Buy the NKK UB25NKW015F – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK UB25NKW015F illuminated pushbutton switch online today and enjoy quick delivery. This compact, high-quality switch features integrated LEDs, durable construction, and reliable performance for industrial control panels. Its space-saving design, multiple color options, and long operational life make it ideal for automation systems, machinery, and distribution equipment. With easy PCB mounting and soldering, it ensures quick installation and consistent operation. Upgrade your control system now and benefit from top-tier reliability!
Buy NKK UB25NKW015F now and experience unmatched reliability and performance in space-sensitive control panels.
