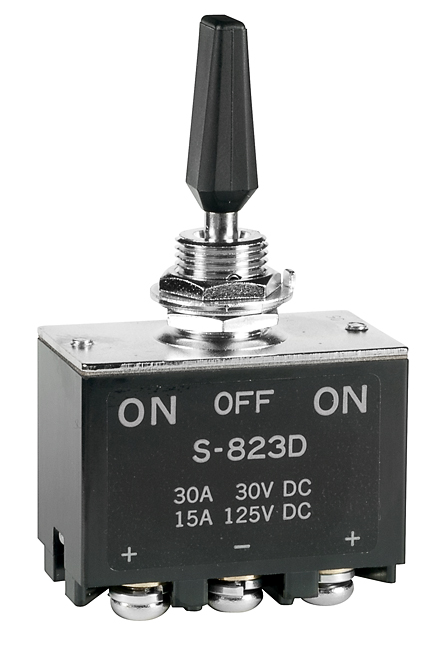

NKK Switches S823D Industrial Toggle Switch
High capacity series toggle switch designed for reliable performance in industrial applications, offering multiple pole configurations and rated for resistive and inductive loads up to 50A. Features include robust brass and phenolic construction, various terminal arrangements, and certifications for UL, cULus, and CSA standards. Suitable for panel mounting with different panel thicknesses, and engineered for long mechanical and electrical life, making it ideal for demanding control systems requiring precise switching and durability. Available with optional splashproof features for enhanced protection.
NKK Switches S823D Industrial Toggle Switch Specifications:
- Electrical Capacity: Up to 50A resistive & inductive load
- Pole Configurations: DPST, DPDT, 3PST, 3PDT with screw lug and flatted lever
- Material: Brass with nickel or chrome plating, phenolic resin case
- Mechanical Life: Minimum 50,000 operations
- Electrical Life: Minimum 25,000 operations
- Operating Temp Range: 10°C through +70°C (+14°F through +158°F)
- Panel Thickness: Ranges from 1.18mm to 4.5mm depending on model
- Terminal Arrangement: Up to 9 terminals with various connection schemes
- Mounting Torque: 2.94Nm (26 lbs.in)
- Certifications: UL Recognized, cULus & CSA certified
- Standards & Certifications: UL, CSA recognized with markings, and CSA certification
Buy the NKK Series S High Capacity Toggle Switch: S823D
Order the NKK Series S high capacity toggle switch online today and experience reliable switching performance for demanding industrial control applications. Engineered with durable materials including brass and phenolic resin, this switch offers up to 50A load capacity, multiple pole configurations, and long operational life. Certified by UL, cULus, and CSA, it ensures safety and compliance. Suitable for various panel thicknesses and equipped with optional splashproof features for protection. Purchase now for robust, dependable control solutions tailored to your automation needs.
Get NKK Series S S823D today—built for high load capacity and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy NKK Switches S823D?
You can click on the BUY or RFQ button to purchase S823D from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S823D?
You can download the S823D datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S823D?
NKK Switches
