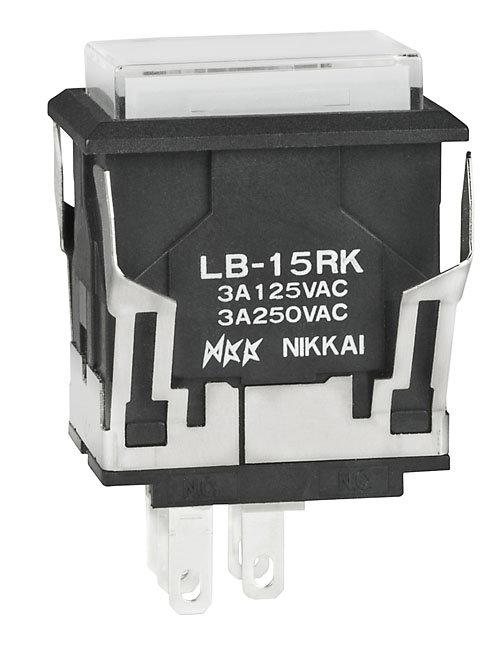

NKK Switches LB15RKW015F24JB Control Pushbutton Switch
This standard-sized illuminated pushbutton switch features snap-in mounting for effortless installation in control panels and electronic devices. It offers bright LED illumination with various color options, high reliability, and a long electrical life. The switch includes durable polycarbonate caps, sealed contact mechanisms, and robust construction to withstand harsh environments. Suitable for automation and control applications, it supports multiple LED, neon, and incandescent lamp configurations, with optional accessories like protective guards and dust covers. Its compact design minimizes behind-panel depth, ensuring space-efficient integration with high performance and durable operation.
NKK Switches LB15RKW015F24JB Control Pushbutton Switch Specifications:
- Housing Material: Polycarbonate
- Mounting Type: Snap-in
- Pole & Circuit Configurations: Single Pole, SPDT, DPDT
- Electrical Capacity: 3A @ 125V AC & 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Pretravel & Overtravel: 1.5mm each, Total Travel: 3.0mm
- Cap Colors & Types: Solid, insert, spot illuminated, bright LED options with various lens/filter colors
- Lamps & LEDs: Incandescent, neon, bright LED, super bright LED; resistor options available
- Ingress Protection: Panel sealed model meets IP65 (IEC60529)
- Environmental Resistance: Humidity 95% for 96 hours @ 40°C, vibration 1.5mm at 1-55Hz, shock 50G
Buy the Buy Standard Control Switches Part Number LB15RKW015F24JB Online
Purchase the NKK Control Pushbutton Switch LB15RKW015F24JB online today to ensure your control panels operate with precision and durability. This high-quality switch features snap-in mounting, bright LED illumination in multiple colors, and a sealed, reliable contact mechanism, perfect for demanding industrial and electronic applications. Its compact design minimizes space behind panels while providing long electrical life and excellent environmental resistance. Easy to install and compatible with various lamps and LEDs, it’s an ideal choice for automating systems requiring dependable, bright, and durable switching solutions.
Buy NKK Switches LB15RKW015F24JB now and experience unmatched reliability and performance in your control and automation projects.
Frequently Asked Questions
Where can I buy NKK Switches LB15RKW015F24JB?
You can click on the BUY or RFQ button to purchase LB15RKW015F24JB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15RKW015F24JB?
You can download the LB15RKW015F24JB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15RKW015F24JB?
NKK Switches
