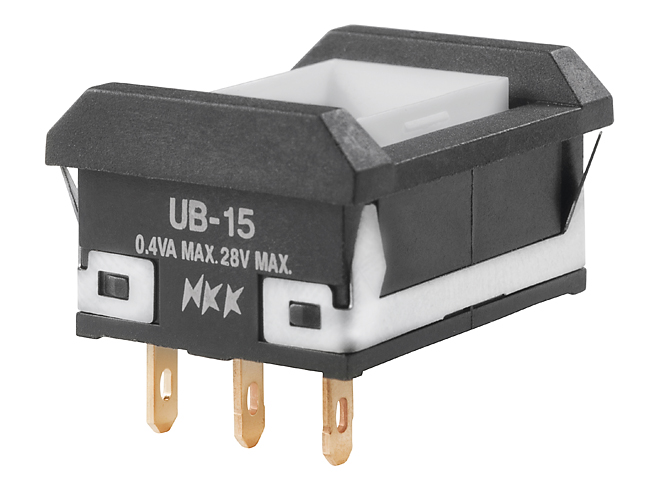

NKK Switches UB15NBKG01N Low Profile Pushbutton Switch
A low-profile illuminated pushbutton switch designed for easy mounting on printed circuit boards. Suitable for soldering applications, providing reliable operation and visual indication.
NKK Switches UB15NBKG01N Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole, SPDT
- Mounting Types: PCB Mounting, Snap-in
- Cap Types & Colors: Full Face Illuminated, Square, Red, Amber, Green, White, Blue, Clear
- LED Voltage & Colors: 2.0-3.2V, Red, Amber, Green, White, Blue, with optional super bright LEDs
- Electrical Rating: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 minute
- Mechanical Life: Minimum 1,000,000 operations
- Environmental: Operating temperature -25°C to +50°C, 50-95% humidity for 96 hours
- Material: Housing/Bezel – UL94V-0 plastic, Contacts – Silver/gold alloy, Terminals – Solder Lug or PCB pins
- Soldering: Manual and wave soldering profiles available
- Certification: UL Recognized, CSA Certified
Buy the Buy NKK Series UB Low Profile Pushbuttons Part Number UB15NBKG01N Online
Order the NKK Series UB low-profile illuminated pushbutton switch today for durable, space-saving operation with bright LED indicators. Perfect for panel mounting in tight environments, offering high electrical ratings, robust construction, and a wide range of color and illumination options. Designed for quick, reliable actuation, ensuring safe use across various industrial and electronic applications. With certification for safety standards, this switch guarantees quality and performance for your control systems. Buy now for efficient integration and long-term dependability.
Get NKK UB15NBKG01N today—built for precise actuation, long-lasting durability, and reliable visual indication in compact spaces.
Frequently Asked Questions
Where can I buy NKK Switches UB15NBKG01N?
You can click on the BUY or RFQ button to purchase UB15NBKG01N from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15NBKG01N?
You can download the UB15NBKG01N datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15NBKG01N?
NKK Switches
