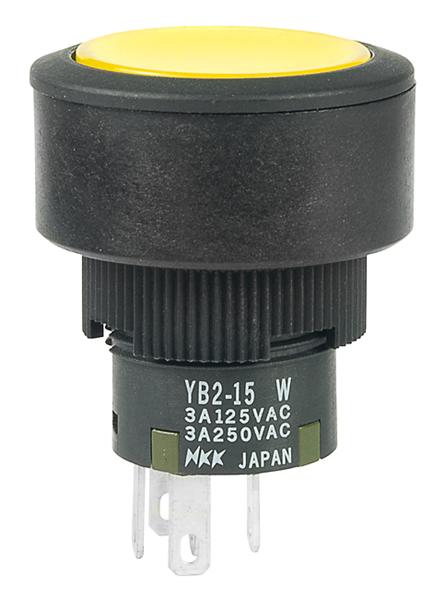

NKK Switches YB216CWCKW015C24CB Illuminated Pushbutton Switch
This standard-sized illuminated pushbutton switch is designed for flush mounting, featuring an illuminated cap that enhances visibility and ease of operation. It is suitable for control panel applications requiring reliable and durable switching with illuminated status indication. The switch has a 22mm or 24mm diameter and meets IP65 standards for splashproof and dustproof protection, making it ideal for industrial and automation environments. It offers multiple LED color options, including clear, red, green, amber, or metallic silver, with various contact configurations such as SPDT and DPDT, and includes solder lug or quick connect terminals for versatile installation. The switch is rated for 3A at 125/250V AC and has a mechanical life of at least 1 million operations, ensuring long-term performance in demanding conditions.
NKK Switches YB216CWCKW015C24CB Illuminated Pushbutton Switch Specifications:
- Diameter: 22mm or 24mm
- Above-panel dimension: 1.8mm
- Ingress Protection: IP65 (IEC60529)
- Light source: LED with various color options
- Electrical rating: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact resistance: 50 milliohms maximum for silver, 100 milliohms for gold
- Dielectric strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical life: 1,000,000 operations
- Electrical life: 200,000 operations
- Nominal operating force: 1.5N (single pole), 3.0N (double pole)
- Pretravel: 0.059” (1.5mm), Overtravel: 0.059” (1.5mm), Total travel: 0.118” (3.0mm)
- Housing material: UL94V-0 glass fiber reinforced polyamide
- Bezel: Black or metallic silver, UL94V-0
- Environmental ratings: -25°C to +50°C with illuminated, -25°C to +70°C non-illuminated
- Humidity: 90-95% RH for 96 hours @ 40°C
- Vibration: 10-55Hz, 1.5mm amplitude
- Shock: 50G in 6 directions
- Mounting torque: 0.785Nm (6.95 Ibf-in)
- Soldering: Manual, max temperature 390°C for 4 seconds
- Standards: IP65, recognized under File No. E44145
Buy the NKK Series YB2 Illuminated Pushbutton: YB216CWCKW015C24CB
Enhance your control panel with the NKK Series YB2 illuminated pushbutton switch, featuring splashproof IP65 protection, multiple LED color options, and a rated capacity of 3A at 125/250V AC. Designed for durability, it offers easy flush mounting, long mechanical life, and versatile terminal options including solder lug and quick connect. Ideal for industrial and automation applications, this switch ensures reliable operation and clear status indication in demanding environments. Purchase online today for dependable quality and long-term performance.
Order your NKK Series YB2 illuminated pushbutton switch today and enhance your control panel with reliable, splashproof operation and vibrant LED indicators.
Frequently Asked Questions
Where can I buy NKK Switches YB216CWCKW015C24CB?
You can click on the BUY or RFQ button to purchase YB216CWCKW015C24CB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB216CWCKW015C24CB?
You can download the YB216CWCKW015C24CB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB216CWCKW015C24CB?
NKK Switches
