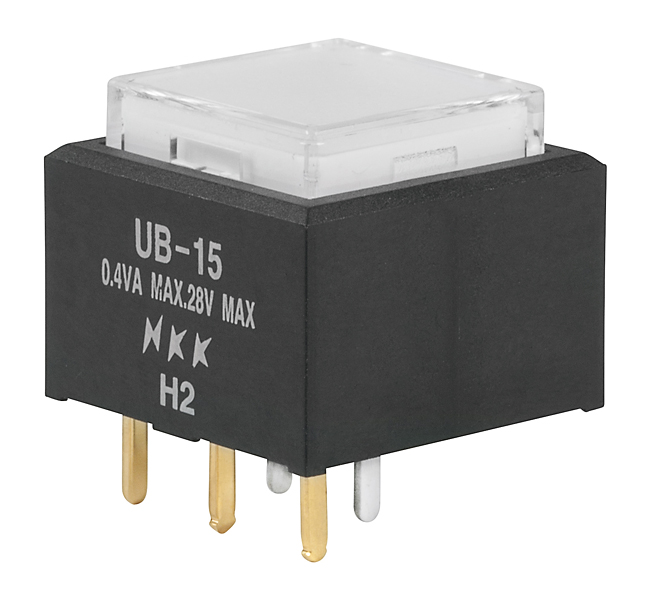

NKK Switches UB15SKG036GJB Low-Profile Pushbutton Switch
The low-profile illuminated pushbutton switch features PCB mounting with solder terminals, providing reliable switching in compact spaces. It supports momentary and alternate circuits, with full-face or spot illumination options in various LED colors such as red, amber, green, blue, and white. The switch offers high electrical and mechanical life with quick-make, quick-break contacts that limit arcing. Suitable for industrial applications, it ensures durability with a stainless steel spring and polycarbonate housing. Its compact design makes it ideal for panels with limited space, offering excellent performance and easy installation.
NKK Switches UB15SKG036GJB Low-Profile Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole, Double Pole, SPDT
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: Silver 50 milliohms max, Gold 100 milliohms max
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for resistive load
- Travel: Total travel 0.091” (2.3mm), Pretravel 0.067” (1.7mm), Overtravel 0.024” (0.6mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0), Bezel: UL94V-0 polycarbonate
- Operating Temperature Range: -20°C to +70°C (non-illuminated), -25°C to +50°C (illuminated)
- LED Colors & Specifications: Red, Amber, Green, White, Blue with forward voltage around 1.85-3.2V and peak currents of 20-30mA
- Panel Thickness: 0.039” to 0.126” (1.0mm to 3.2mm) for snap-in mounting
- Certifications: UL Recognized, CSA Certified (order with marking)
Buy the Buy NKK UB15SKG036GJB Low-Profile Illuminated Pushbutton Switch Online
Order the NKK Series UB low-profile illuminated pushbutton switch online today and enjoy superior durability, easy installation, and high electrical performance. Perfect for compact industrial panels, it features quick-make contacts, multiple LED color options, and UL/CSA certifications. Its rugged construction ensures long-lasting operation with high mechanical and electrical life. Whether for automation, control panels, or machinery, this switch provides reliable operation, quick actuation, and clear illumination, making it an essential component for demanding industrial environments. Purchase now to guarantee quality and performance.
Buy NKK Series UB low-profile illuminated pushbutton switch now and experience unmatched reliability and performance in your industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches UB15SKG036GJB?
You can click on the BUY or RFQ button to purchase UB15SKG036GJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15SKG036GJB?
You can download the UB15SKG036GJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15SKG036GJB?
NKK Switches
