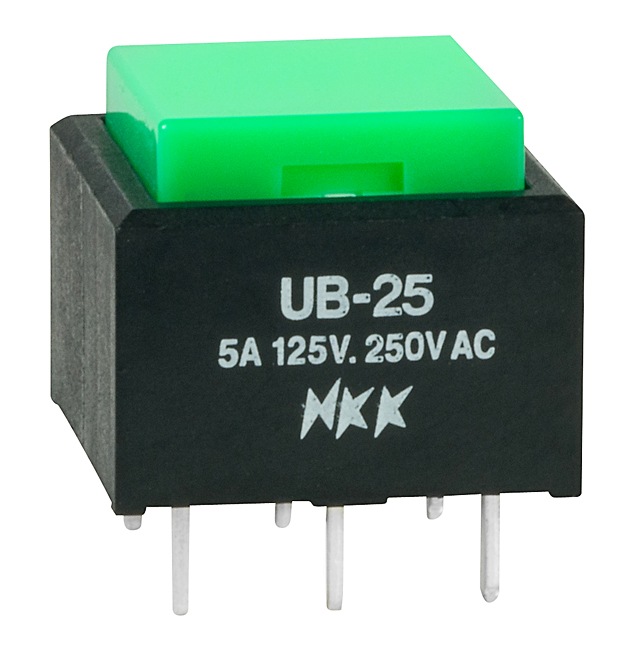

NKK Switches UB25SKW03NF Low Profile Pushbutton Switch
Low profile illuminated pushbutton switch designed for PC and solder mounting. Compact and easy to install, suitable for various electronic control applications. Featuring bright LEDs in multiple colors, durable construction with polycarbonate caps, and versatile mounting options, this switch is ideal for space-constrained environments requiring reliable performance and clear visual feedback.
NKK Switches UB25SKW03NF Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: SPDT, Additional configurations available
- Mounting Types: PCB Snap-in Mounting
- Housing Material: Polycarbonate UL94V-0
- Cap Colors & Types: Full face or spot illumination, in red, amber, green, white, blue, or black
- LED Specifications: Bright or super bright LEDs, forward voltage 1.85V-3.2V, current 20-30mA, reverse voltage 5V
- Electrical Ratings: 5A at 125/250V AC, 0.4VA max at 28V AC/DC
- Environmental: Operating temperature -20°C to +70°C, humidity 90-95% for 96 hours
- Dimensions: Square or rectangular caps, size varies with model, typical panel thickness 0.039” to 0.126”
- Mechanism: Snap-acting contact with pretravel 1.7mm, overtravel 0.6mm, total travel 2.3mm
- Certifications: UL, cULus, CSA recognized with appropriate order, UL94V-0 housing
Buy the Buy NKK Switches Low Profile Pushbutton Part Number UB25SKW03NF Online
Order the NKK Switches UB25SKW03NF low profile illuminated pushbutton switch online today. It offers easy PCB mounting, bright LED indicators in multiple colors, and durable polycarbonate caps. Perfect for compact electronic control applications, this switch features reliable electrical ratings, space-saving design, and standard certifications for safety and quality. Ensure your electronic project benefits from quick installation, dependable operation, and excellent visual feedback by purchasing online now with confidence and convenience.
Buy NKK Switches UB25SKW03NF now and experience unmatched reliability and performance in space-constrained control panels.
Frequently Asked Questions
Where can I buy NKK Switches UB25SKW03NF?
You can click on the BUY or RFQ button to purchase UB25SKW03NF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB25SKW03NF?
You can download the UB25SKW03NF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB25SKW03NF?
NKK Switches
