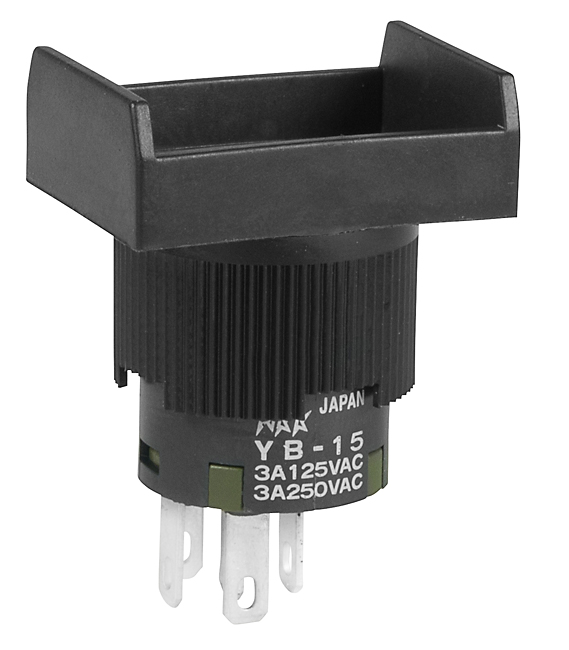

NKK Switches YB15RKW01 Panel Mount Illuminated Pushbutton
An illuminated pushbutton switch designed for panel mounting. It features a compact body suitable for panel integration and provides visual indication when activated, making it ideal for control panels and user interfaces.
NKK Switches YB15RKW01 Panel Mount Illuminated Pushbutton Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA max. @ 28V AC/DC max.
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 100g (non-sealed), 167g (sealed) for double pole
- Contact Timing: Pretravel 0.059” (1.5mm); Overtravel 0.059” (1.5mm); Total Travel 0.118” (3.0mm)
- Materials & Finishes: Housing/Bezel: UL94V-0 polyamide; Movable Contactor: Phosphor bronze with silver or gold plating
- Environmental Data: Operating temperature range -25°C to +70°C, humidity 90-95% for 96 hours at 40°C
- Installation: Mounting torque 0.785Nm, quick connect force 24.5N, soldering temperature 250°C, time 3 seconds
- Standards & Certifications: UL Recognized, CSA Certified, rated for 3A @ 125/250V AC
Buy the Buy NKK Switches Panel Mount Illuminated Pushbutton Part Number YB15RKW01 Online
Purchase the NKK Series YB illuminated pushbutton switch online today and enhance your control panels with dependable, high-quality switching solutions. Designed for panel mounting, it features bright illumination for clear visibility and quick operation. Its durable construction ensures long life and reliable performance under demanding conditions, including a wide temperature and humidity range. Easy to install with quick connect terminals and a compact size, this switch is suitable for various industrial and commercial applications, providing the perfect blend of functionality and reliability.
Order your NKK Series YB Panel Mount Illuminated Pushbutton today and give your control panels the reliable operation they deserve.
Frequently Asked Questions
Where can I buy NKK Switches YB15RKW01?
You can click on the BUY or RFQ button to purchase YB15RKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB15RKW01?
You can download the YB15RKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB15RKW01?
NKK Switches
