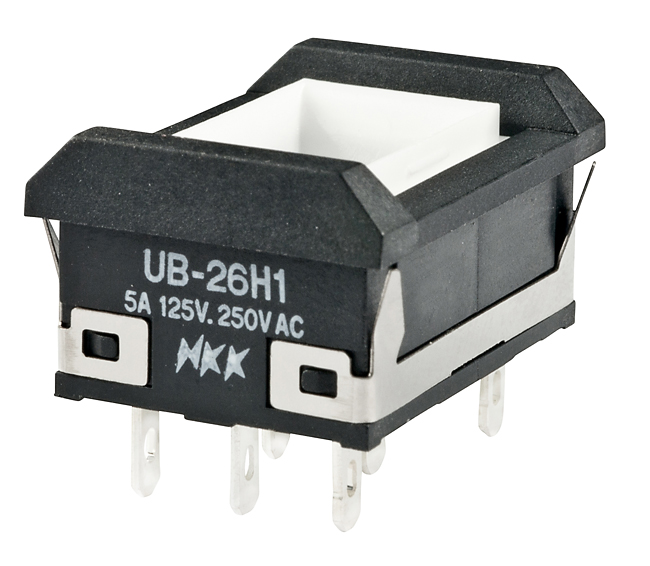

NKK Switches UB26NBKW015D Illuminated Pushbutton Switch
A low-profile, illuminated pushbutton switch compatible with PC and solder mounting. Suitable for various electronic applications requiring user input and visual indication.
NKK Switches UB26NBKW015D Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: SPDT
- Mounting Type: PCB Mounting
- LED Color: White
- LED Voltage: 125/250V AC or 28V DC maximum
- Contact Resistance: 50 milliohms maximum for silver
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 1.9N for square & rectangular models
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total travel 0.091” (2.3mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature Range: -20°C to +70°C
Buy the NKK Series UB26NBKW015D Illuminated Pushbutton Switch – Reliable LED Control Device
Enhance your electronic designs with this low-profile illuminated pushbutton switch, offering reliable performance with LED indicators and durable construction. Suitable for compact setups requiring user feedback and visual cues. Easy PCB mounting or soldering ensures simple integration into various applications. Designed to withstand frequent use, it ensures long operational life, excellent insulation resistance, and high dielectric strength. Perfect for automation, control panels, and interface devices, this switch combines functionality with space-saving form factor. Available to purchase online for your convenience.
Order your NKK Series UB26NBKW015D illuminated pushbutton switch today and ensure dependable operation with visual indicators for your electronics projects.
Frequently Asked Questions
Where can I buy NKK Switches UB26NBKW015D?
You can click on the BUY or RFQ button to purchase UB26NBKW015D from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB26NBKW015D?
You can download the UB26NBKW015D datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB26NBKW015D?
NKK Switches
