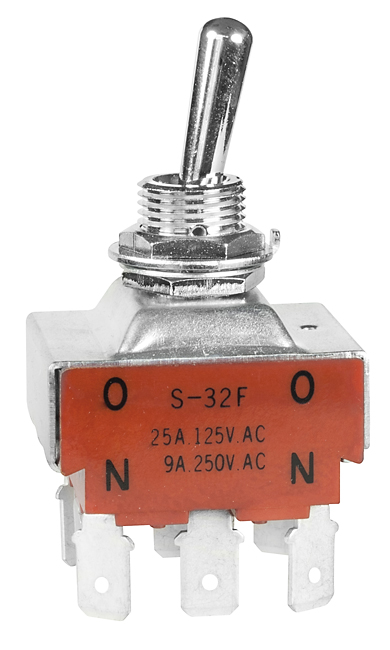

NKK Switches S32F Toggle Switch
The standard size toggle switch offers reliable performance with medium to high electrical capacity, suitable for automation, control panels, and industrial applications. Constructed with durable materials like brass, steel, and copper with silver plating, it ensures longevity with a mechanical life of 50,000 operations minimum and electrical life of 15,000 operations minimum. It features UL, CSA, and cULus recognition when ordered accordingly. With various contact configurations (SPST, DPDT, 4PDT), it supports resistive and inductive loads up to 25A, operational voltage up to 250V AC, and an operating temperature range from -10°C to +70°C. These toggle switches are designed for easy mounting and soldering, making them ideal for diverse industrial control needs.
NKK Switches S32F Toggle Switch Specifications:
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC for 1 minute minimum
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 15,000 operations minimum
- Operating Temperature Range: -10°C to +70°C (+14°F to +158°F)
- Material: Brass with chrome plating (toggle), brass with chrome plating (bushing), melamine phenol (case), steel with zinc plating (case cover), copper with silver plating (movable contact), silver alloy capped on copper with silver plating (contacts), brass with tin plating (terminals)
- Mounting Torque: 2.94 Nm (26 lbs-in)
- Maximum Panel Thickness: 4.6mm (0.181 inches)
- Soldering Time & Temperature: Manual soldering, see Profile A in supplement section
- Certifications: UL, CSA, cULus recognized when ordered with specific marking
Buy the NKK 32F – Reliable Toggle Switch for Industrial Applications
Enhance your control system with the high-quality toggle switch designed for demanding industrial environments. It offers reliable operation with high circuit capacity, UL and CSA certifications, and durable construction materials including brass, steel, and silver-plated copper. Easy to install with standard hardware and soldering specifications, this switch supports resistive and inductive loads up to 25A and operates efficiently within -10°C to +70°C temperature range. Perfect for automation, instrumentation, and control panel applications, ensuring long-lasting performance and safety.
Buy NKK 32F toggle switch now and experience unmatched reliability and performance for your automation and control projects.
Frequently Asked Questions
Where can I buy NKK Switches S32F?
You can click on the BUY or RFQ button to purchase S32F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S32F?
You can download the S32F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S32F?
NKK Switches
