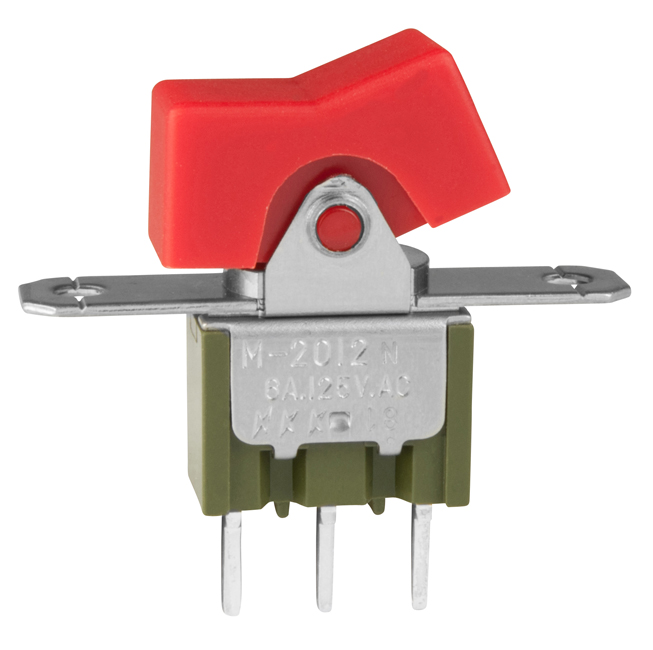

NKK Switches M2012TNW01DC Miniature Rocker Switch
The miniature rocker switch offers reliable switching capabilities for electronic control circuits. It features a compact design, high insulation resistance, and durable contacts rated for 6A at 125V AC and 3A at 250V AC. Suitable for panel and subpanel mounting, it includes a UL 94V-0 rated case and epoxy sealed terminals for protection against contaminants. The switch supports various mounting options, ensuring flexibility for different device environments. Its dual ratings for power and logic make it ideal for versatile applications, ensuring long mechanical and electrical life with high dielectric strength and secure connections.
NKK Switches M2012TNW01DC Miniature Rocker Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC
- Power Level (silver): 0.4VA max @ 28V AC/DC
- Contact Resistance: 10 milliohms max for silver; 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts; 1,500V AC between contacts and case for 1 min
- Mechanical Life: 50,000 operations min for gold; 25,000 for silver
- Electrical Life: 50,000 operations min for silver at 3A @ 125V AC
- Angle of Throw: 25°
- Materials: Stainless Steel actuator and body, UL94V-0 case, polyamide actuators
- Operating Temperature Range: -30°C to +85°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm for 2 hours
- Shock: 50G acceleration in multiple directions
- Soldering: Wave or manual soldering with actuator in OFF position
- Certifications: UL Recognized, CSA Certified
Buy the NKK Series M Miniature Rocker: M2012TNW01DC
Enhance your electronic device with the NKK Series M Miniature Rocker switch M2012TNW01DC. This compact switch provides reliable switching for various circuits, rated up to 6A at 125V AC and 3A at 250V AC. Its dual contact ratings and high insulation resistance ensure safety and durability over extended use. Offering multiple panel mounting options, epoxy sealed terminals, and UL approval, it is ideal for control panels, instrumentation, and automation systems. Purchase online today to enjoy high performance and peace of mind in your applications.
Buy NKK Series M Miniature Rocker switch M2012TNW01DC now and experience unmatched reliability and performance with durable contacts and versatile mounting options.
Frequently Asked Questions
Where can I buy NKK Switches M2012TNW01DC?
You can click on the BUY or RFQ button to purchase M2012TNW01DC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012TNW01DC?
You can download the M2012TNW01DC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012TNW01DC?
NKK Switches
