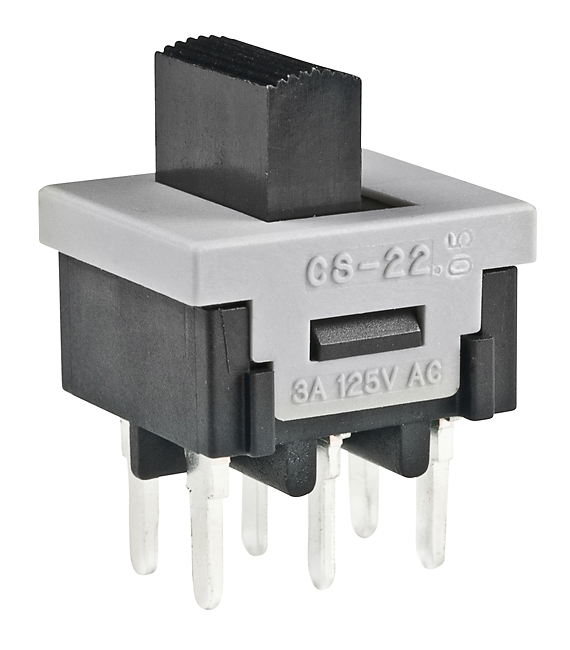

NKK Switches CS22BNW03 Power Slide Switch
A miniature slide switch designed for compact electronic applications. It features a small form factor suitable for precise and space-conscious circuit designs. This series offers high performance with high-quality construction, including molded high-insulating material case rated UL 94V-0, and epoxy sealed terminals to prevent contamination. It supports up to 3A at 125V AC, has a total travel of 0.087 inches, and withstands up to 12 kilovolts of electrostatic discharge, making it ideal for telecommunications, controls, audio devices, and household appliances.
NKK Switches CS22BNW03 Power Slide Switch Specifications:
- Electrical Capacity: 3A @ 125V AC, 2A @ 250V AC
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 20,000 operations minimum
- Static Capability: Withstands 12 kilovolts electrostatic discharge
- Contact Timing: Nonshorting (break-before-make)
- Total Travel: 0.087 inches (2.2mm)
- Actuator: NARROW for Single Pole, WIDE for Double Pole
- Materials & Finishes: Actuator - Silver plated copper, case & cover - UL 94V-0 rated glass fiber reinforced polyamide, movable & stationary contacts - Silver capped copper
- Operating Temp Range: -30°C to +85°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration & Shock: 10-55Hz, 1.5mm amplitude; 50G acceleration
- Soldering & Cleaning: Wave, manual soldering; clean with alcohol-based solution
Buy the Buy NKK Series CS Power Slide Switch Part Number CS22BNW03 Online
Purchase the NKK Power Slide Switch CS22BNW03 online today for reliable performance in electronic control systems. This compact switch features a 3A rating at 125V AC, UL 94V-0 flammability rated case, and epoxy sealed terminals, making it ideal for telecommunications, audio devices, and household appliances. Its high electrostatic discharge withstand, precise total travel of 0.087 inches, and durable construction ensure long-lasting, dependable operation in space-constrained environments. Order now for quick delivery and seamless integration into your project.
Get NKK CS22BNW03 today—designed for precise switching in compact electronic controls and household devices.
Frequently Asked Questions
Where can I buy NKK Switches CS22BNW03?
You can click on the BUY or RFQ button to purchase CS22BNW03 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CS22BNW03?
You can download the CS22BNW03 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CS22BNW03?
NKK Switches
