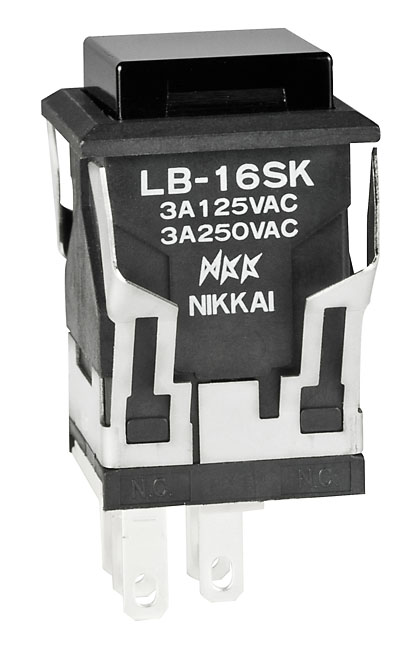

NKK Switches LB16SKW011FA Illuminated Pushbutton
The LB series illuminated push button switch features snap-in mounting for quick installation and reliable operation. It offers full surface illumination with bright LED options in multiple colors, making it highly visible for control panels. Designed for durability, it includes tactile feedback, long electrical life, and compliance with safety standards. Suitable for diverse industrial and electronic control applications, this switch is ideal for equipment requiring clear visual indicators and robust performance in demanding environments.
NKK Switches LB16SKW011FA Illuminated Pushbutton Specifications:
- Power Level (silver): 3A @ 125V AC & 250V AC
- Electrical Capacity (resistive load): 3A @ 125/250V AC; 0.4VA @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms maximum for silver contacts, 100 milliohms maximum for gold contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Contact Material: Silver alloy or copper with gold plating
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Mounting: Snap-in with stainless steel clips for versatile panel thicknesses
- Dimensions: Compatible with panel cutout 16.2mm x 16.2mm (square), other shapes available
- Standards & Certifications: Recognized UL and CSA, compliant with IEC60529 IP65 panel seal
- Soldering & Installation: Manual soldering recommended, quick connect terminals also available
Buy the NKK Series LB Illuminated Pushbutton: LB16SKW011FA
Order the NKK LB16SKW011FA illuminated pushbutton today for reliable control with bright LED indicators in multiple colors, secure snap-in mounting, and exceptional durability. Ideal for industrial and electronic applications, this switch offers long electrical life, easy installation, and compliance with recognized safety standards. Whether you need a control switch with clear visibility or robust performance, this versatile component ensures optimal operation in demanding environments. Purchase online now for fast delivery and factory-direct pricing!
Get NKK LB16SKW011FA illuminated push button today—built for precision, visual clarity, and long-lasting durability in control systems.
Frequently Asked Questions
Where can I buy NKK Switches LB16SKW011FA?
You can click on the BUY or RFQ button to purchase LB16SKW011FA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16SKW011FA?
You can download the LB16SKW011FA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16SKW011FA?
NKK Switches
