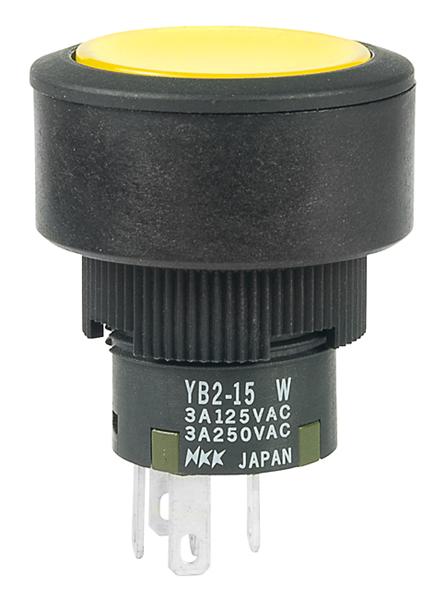

NKK Switches YB216CWCKW01CUL5DJB Illuminated Pushbutton Switch
The YB216CWCKW01CUL5DJB is a standard size illuminated pushbutton switch with a flush mount design, ideal for control applications requiring clear visual status indication. It features a momentary contact, 3A rating at 125/250V AC, and a wide operating temperature range of -25°C to +50°C. Made with durable UL94V-0 housing and black bezel, it offers IP65 dust-tight and splashproof protection. The switch includes a bright white LED, with snap-action contacts, and easy panel mounting. Its long stroke and light touch actuation ensure reliable circuit operation. Suitable for industrial control panels, automation systems, and machinery with customizable legends and illumination options.
NKK Switches YB216CWCKW01CUL5DJB Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole, Momentary, ON (ON) / Ticon
- Contact Resistance: 50 milliohms max for silver contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations min
- Electrical Life: 200,000 operations min
- Nominal Operating Force: 1.5N (single pole), 3.0N (double pole)
- Pretravel: 0.059” (1.5mm); Overtravel: 0.059” (1.5mm); Total Travel: 0.118” (3.0mm)
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Bezel Material: UL94V-0 polycarbonate
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- IP Rating: IP65 IEC60529 standard
- Mounting Torque: 0.785Nm (6.95 lbf·in)
- Soldering Temperature & Time: 390°C max for 4 seconds maximum
Buy the NKK Series YB2 Illuminated Pushbutton Switch: YB216CWCKW01CUL5DJB
Enhance your control panels with the high-quality NKK Series YB2 illuminated pushbutton switch. Featuring a flush mount design, IP65 splashproof protection, and bright LED illumination, it offers exceptional durability and visibility for industrial and automation applications. Easy to install with a long mechanical and electrical life, this switch is perfect for machinery, control panels, and automation systems needing reliable circuit status indication. Choose this switch for robust, precise, and visually clear operation for your control needs.
Order your NKK Series YB2 illuminated flush mount switch today and ensure reliable control with bright LED indication and IP65 protection.
Frequently Asked Questions
Where can I buy NKK Switches YB216CWCKW01CUL5DJB?
You can click on the BUY or RFQ button to purchase YB216CWCKW01CUL5DJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB216CWCKW01CUL5DJB?
You can download the YB216CWCKW01CUL5DJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB216CWCKW01CUL5DJB?
NKK Switches
