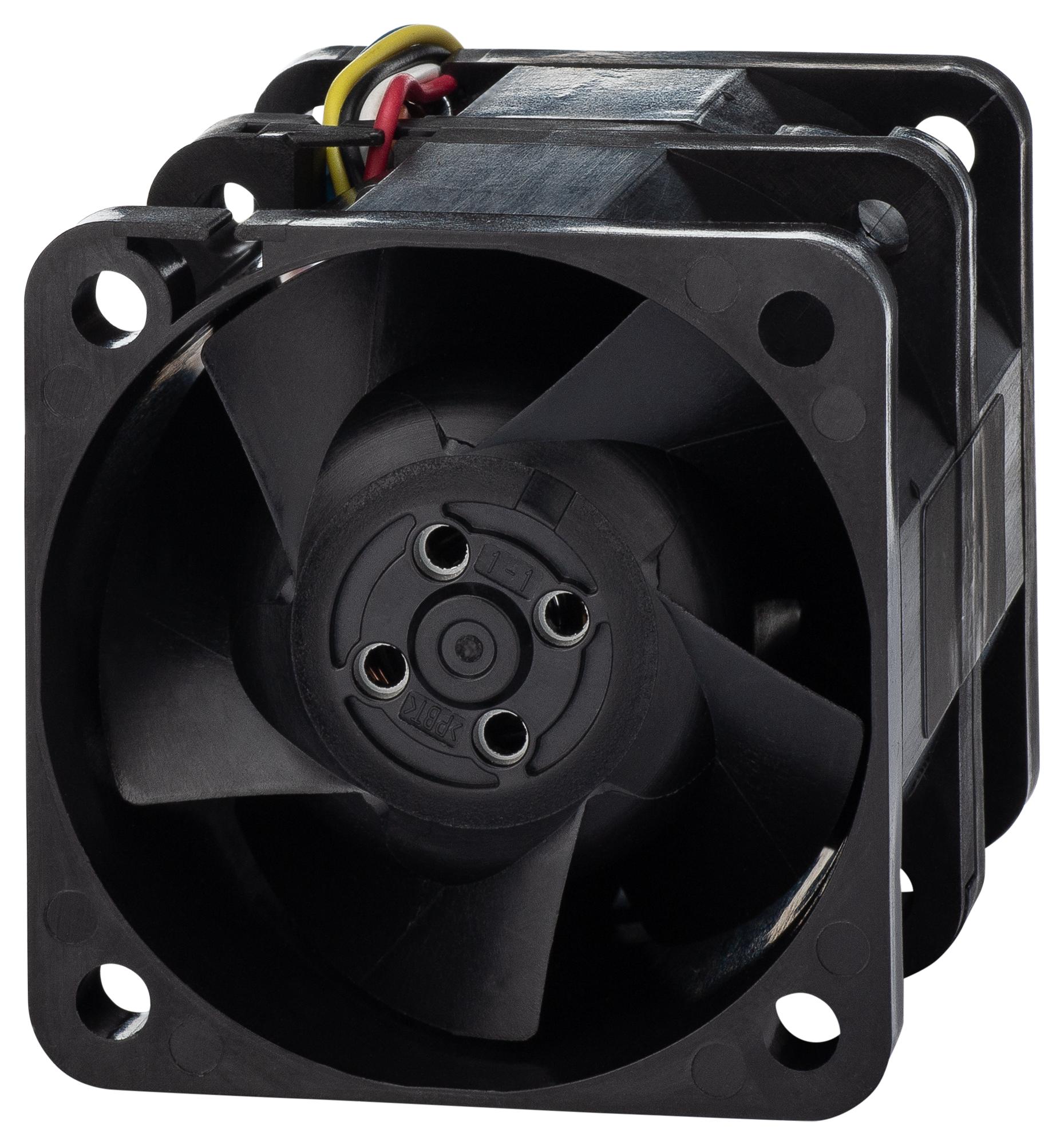

NMB TECHNOLOGIES 04056EA12REUB2 Axial Cooling Fan
This Pulse Width Modulation axial cooling fan features a durable DC brushless motor with PWM speed control, enabling energy efficiency, reduced vibration, and lower noise levels. Designed for reliable operation in various environments, it offers protection features such as auto restart and polarity safeguard, along with insulation resistance of 10M ohms and dielectric withstand voltage up to AC 700V. Suitable for data centers, switches, broadcast equipment, and industrial power supplies, it achieves a lifespan of approximately 70,000 hours at 40°C, ensuring long-term performance and efficiency.
NMB TECHNOLOGIES 04056EA12REUB2 Axial Cooling Fan Specifications:
- Motor Type: DC Brushless Motor
- PWM Control Voltage: 33V
- PWM Duty Range: 20% to 100%
- PWM Frequency: 25kHz
- Input Voltage: 12V ±10%
- Operating Voltage Range: 10.8V to 12.6V
- Rated Voltage: 12V
- Max Current: 1.70A
- Max Power: 20.4W
- Air Flow: 20000 CFM
- Static Pressure: 0.86 inH2O
- Noise: 90 dB
- Lifespan: Approximately 70,000 hours at 40°C
- Housing Material: Plastic UL94V-0
- Bearing Type: Ball Bearing
- Lead Wires: UL10368 AWG26/AWG28
- Protection Features: Auto Restart, Polarity Protection
- Temperature Range: -10°C to +60°C (Operating), -30°C to +70°C (Storage)
Buy the Buy Minebea axial cooling fan Part Number 04056EA12REUB2 Online
Order the Minebea axial cooling fan 04056EA12REUB2 online today to ensure high-efficiency cooling with low noise and long lifespan. Its PWM control offers precise speed regulation suitable for data centers, broadcast, and industrial applications. Crafted with durable plastic casings and ball bearings, this fan provides enhanced reliability, vibration Resistance, and energy savings. Perfect for maintaining optimal device temperatures, this fan guarantees operational stability in demanding environments. Purchase now and improve your cooling solutions with a top-quality, easy-to-install axial fan for all your electronic and industrial needs.
Buy Minebea axial cooling fan 04056EA12REUB2 now and experience unmatched reliability and performance for industrial cooling and electronic equipment.
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 04056EA12REUB2?
You can click on the BUY or RFQ button to purchase 04056EA12REUB2 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 04056EA12REUB2?
You can download the 04056EA12REUB2 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 04056EA12REUB2?
NMB TECHNOLOGIES
